General Explanation
Do you know what is the business that makes you different?
Focus Inc Athena-Jet Plus dual heads direct to garment cloth shoe canvas cap shirt printer DTG flatbed printer with the newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, we offer a range of small and large DTG printer devices. These are machines for customizing and creating unique graphics products.
Product Specification
|
Focus Inc. INKJET ALPHA-JET X A2 SIZE UV & DTG PRINTER |
|
|
Print Technology: Micro Piezo Inkjet |
Print Head: DX11/4720 |
|
Head Channel: 18 channels/ 8channels |
Head number: 3 heads: White+Color+Varnish / 2 heads:While+Color |
|
UV system: 100-Degree adjustable |
Cooling system: Water cooling |
|
Temperature adjusts: Auto on/off. 25-35℃ |
UV wavelength: 395-405nm |
|
Head protection: Intelligent anti-scratch |
Print speed: 175s/A2 size(1440*720dpi) |
|
Print model: Uni-direction/Bi-dirction |
Print resolution: 720*720dpi-720*3080dpi |
|
Print type: One pass/Single/Copies |
White layer: Bottom/Top/Middle |
|
Rip software: FocusincRIPV9.07/Wasatch/Riprint |
Image type: Tiff, Jpeg, Png |
|
Repeat precision: 0.04mm |
Head cleaning: Auto flushing+Keep wet |
|
Max. print size: 40*60cm |
Print media: Hard/Flexible/Bottle/ Tshirt |
|
Media thickness adjust: Software auto-detection |
Max. print thickness: 20cm |
|
Ink type: UV ink |
Ink system: Refill ink tank system |
|
Ink process system: Auto shaking + circulation |
Ink level: Auto detection+Auto alarm |
|
Color model: 8-color(CMYK+LC+LM+White+Varnish) |

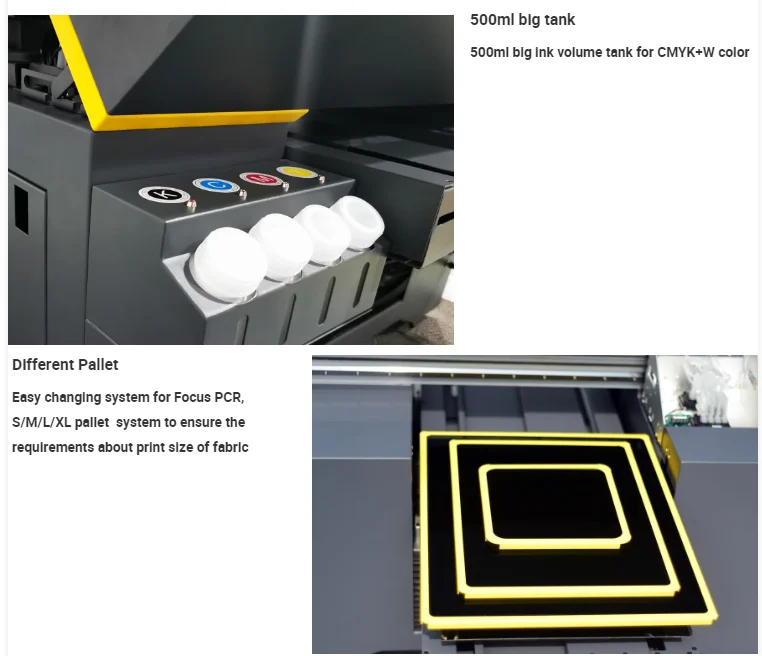

Tank volume: 500ml refillable |
|
Color Rendition: ICC profile+Curve |
Position type: Laser marking |
|
Print table: Vacuum adsorption |
Table treatment: Teflon coating |
|
Print model: 3D. Wave. Rand. Eclosion |
Motion config: Servo motor |
|
Control interface: Control panel+Software |
Drive config: 3Pcs Linear rails+Dual Ballscrew |
|
System requires: WINXP/WIN7/WIN10 32/64bit |
Working environment: 18-25℃, 50% Humidity |
|
Working power: 120W |
Electric supply: 110V/220V |
|
Interface: USB2.0/3.0/TCPIP |
Gross weight/Net weight: 150KG/230KG |
|
Packing size: 113m*132cm*93.5cm |
Machine size: 98cm*121.5cm*67.8cm |
Advantages
1)CMYK+LC+LM+W+Varnish 8 color ink type for UV option
2)CMYK+WWWW 8colors for DTG option
3)Compatible with XP600 / TX800 / 4720 print head
4)Max. 60cm*40cm A2 printing size
5)With 3 high-power Taiwan Delta vacuum suction fans
6)With Hiwin brand linear rail and ball screw, high muse, high speed, high resolution
7)Adopting American GMC luxury car standard insulation anti-interference wiring
8)Automatically ink wipe, maintenance system, prevent scratching and avoid printing head clog in idle time
9)Ink level sensor with light and alarm
10)Magnetic shaking setting ink the ink tank which can be twirling in the bottle to avoid precipitation of white ink
11)High-sensing touch screen control button
12)Automatic detecting exactly height sensor, avoiding print head scratch
13)Removable ink tank set, which lets ink refilling more convenient!
14)The stainless steel body of the printer , no worry about the oxidation as ink drip on it
15)Every cable was clearly marked which is convenient for customer learning and operating
16)The stainless steel body of the printer , no worry about the oxidation as ink drip on it
17)Complete acrylic cover, you couldn\’t find any screw or connection line on the surface
etc. latest research and development results!
Absolute great samples printed
Factory and exhibition view
Focus Inc. Digital Technology Co., Ltd.
was set up in Shanghai, China, who is a manufacturer to R&D the best and potential DTG printer, digital UV flatbed printer, signs &adverting products. With 17 years of experience, we have the ability to supply all products at a reasonable price and real-time support lean upon our own production line, professional engineers, strict parts purchase channel and altitudinal responsible action.
Our mission is to make the best solution for the international printing industry!
Welcome to visit our company and contact us.
We are waiting for you! 🙂
With years of export experience along with excellent quality, advanced services, and competitive prices, we have won numerous customers\’ trust and support.
1. Every printer we delivered needs to pass our second inspection before delivery.

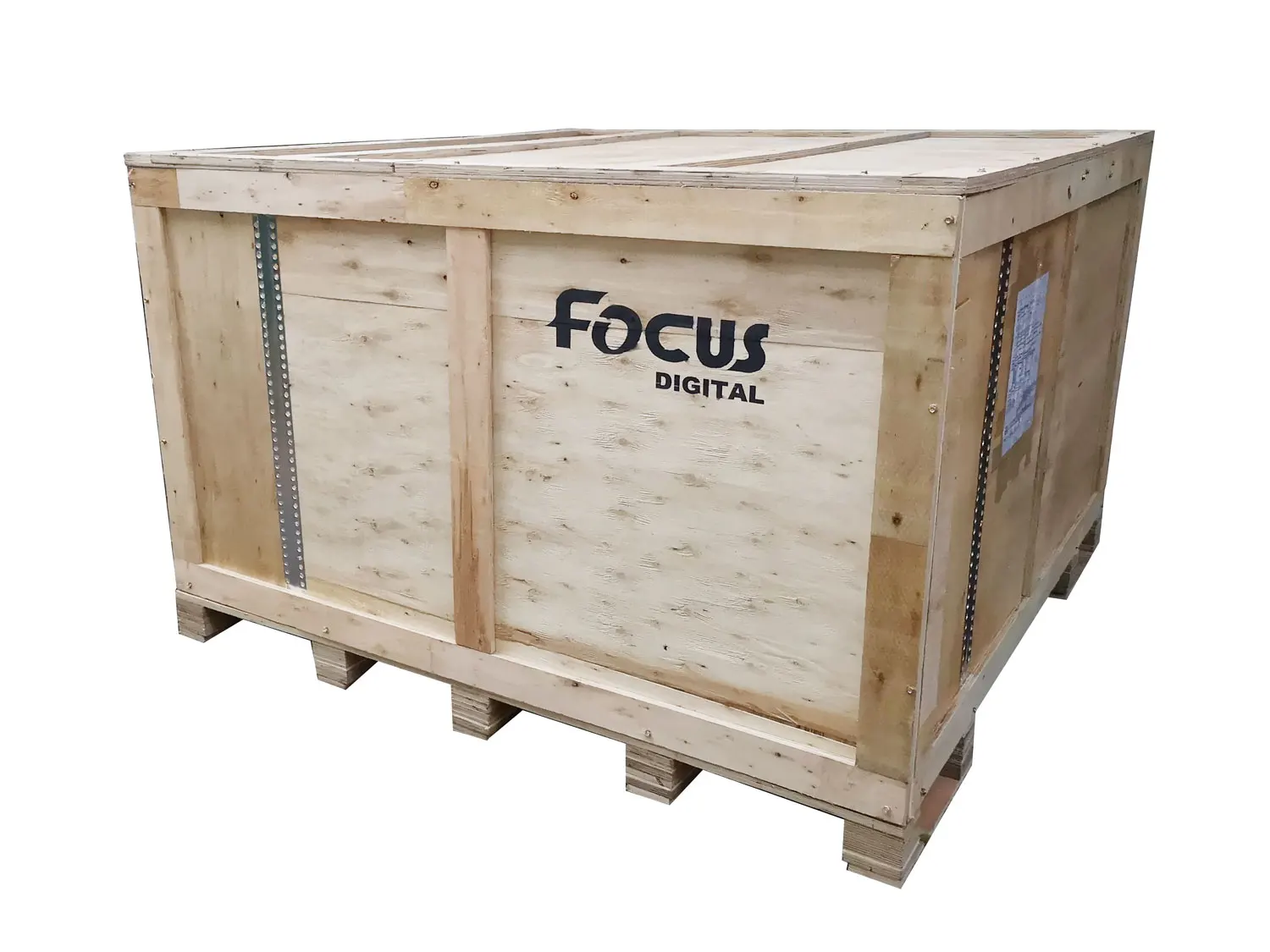

2. International standard wooden package.
3. Our shipping forwarder could help you to deal with the customs clearance.
