Product Description
Product Paramenters

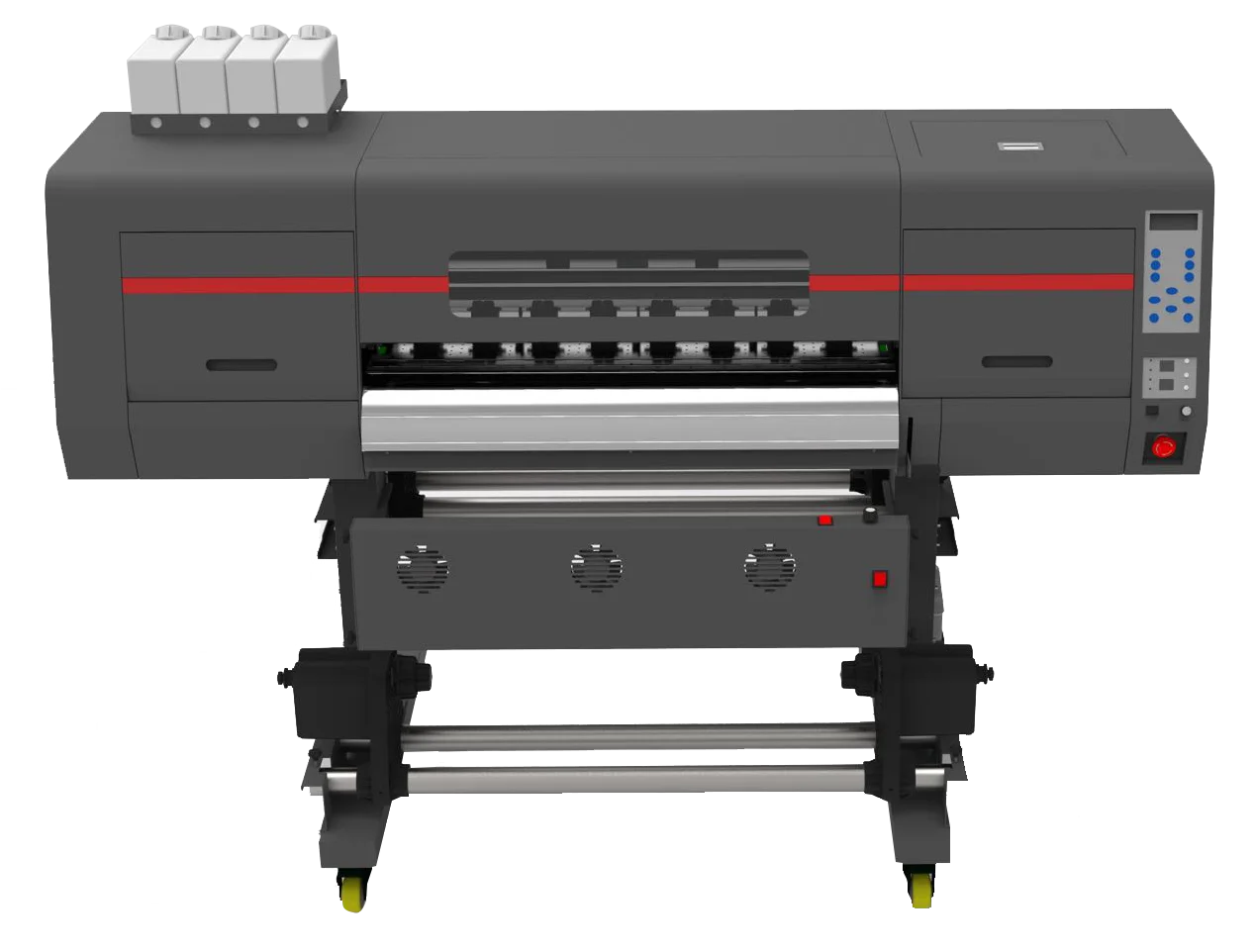

| Printer Technical Parameters | ||||||
| Printer head | EPS3200 | Nozzle Quantity | 3200 | |||
| Head Quantity | 2 pcs | Print width | 61cm | |||
| Ink Color | C M Y K W | Print Height | 2-5mm | |||
| Resolution | 360×120/360×1800/720×1200/720×1800(DPI) | Media transfer | Automatic delivery, paper loading | |||
| Print speed | 4 pass: 20 m/H | Dryer way | External independent drying system | |||
| Ink supply method | Siphon negative pressure ink supply | |||||
| Moisturizing mode | Fully automatic sealing moisturizing cleaning | |||||

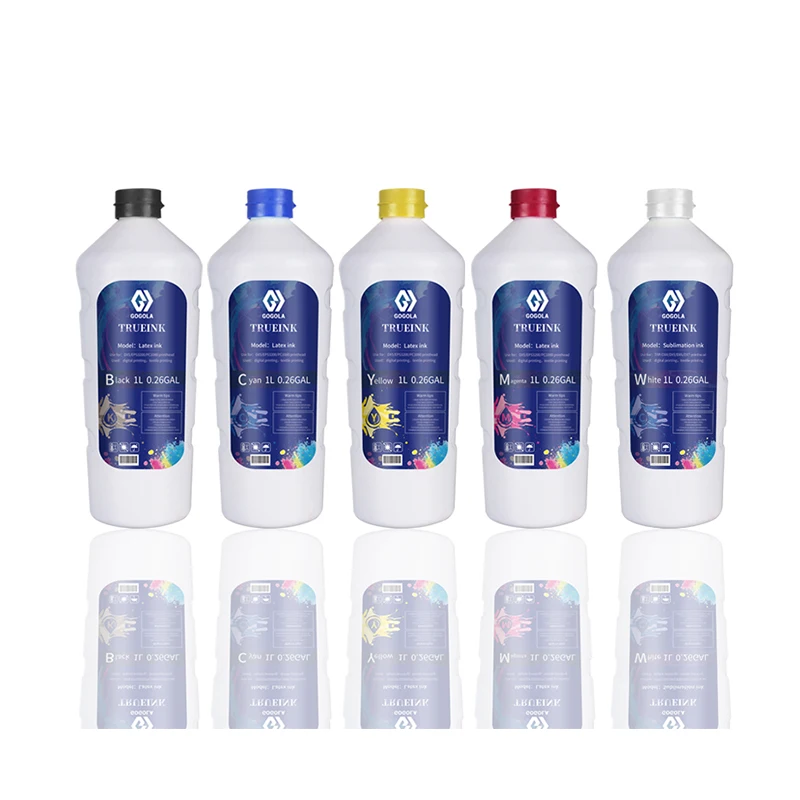

| Ink Type | Latex ink | Transmission interface | Gigabit LAN | |||
| Computer system | Win7 64bit, Win10 | Image format | TIFF JPG EPS PDF | |||
| Operate environment | Tempeature: 15℃-30℃, Humidtiy: 35%-65% | RIP Software | Maintop6.0/Photoprint/ONYX | |||
| Coumputer | WIN 7 64 bit (best), win10 (Flagship / Professional), hard disk: NTFS, C disk space minimum 100G, hard disk WD500G, graphics card: ATI alone 4G memory, CPU: Intel quad-core i5 / i7 Gigabit LAN | |||||

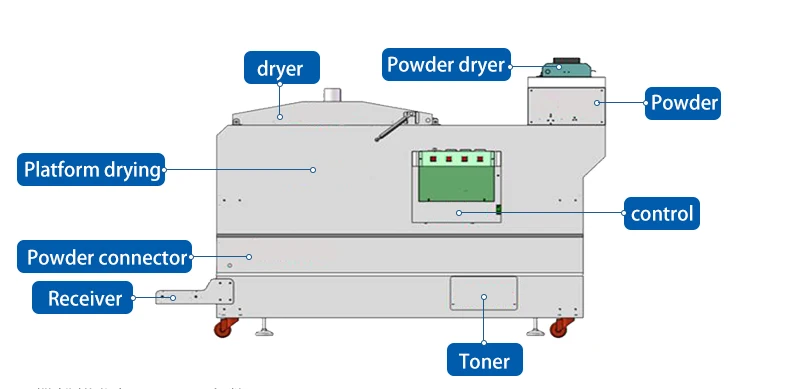

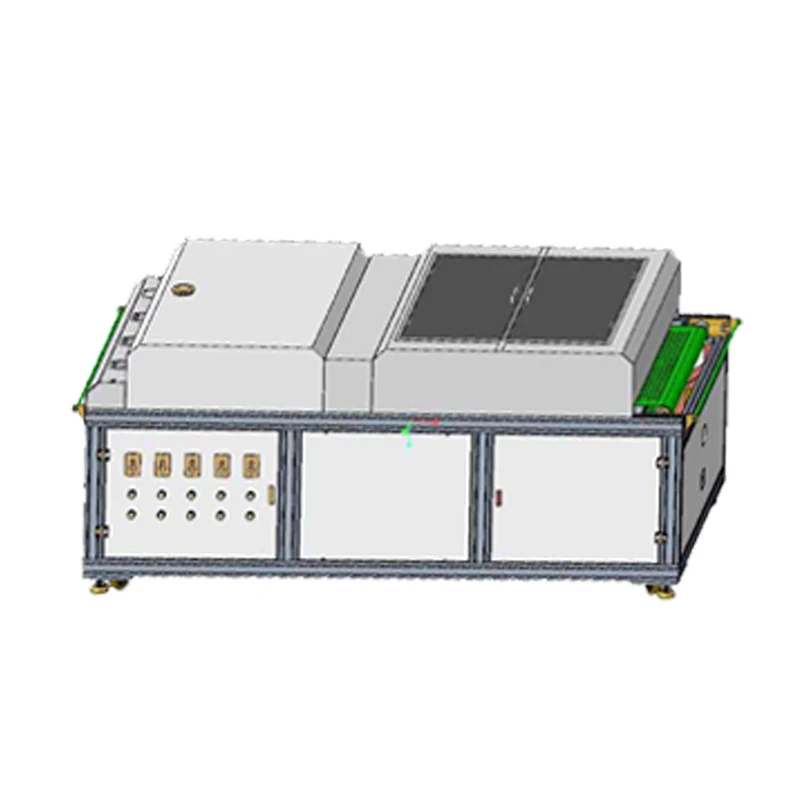

| Powdering Dryering Machine Technical Parameters | ||
| Rated Voltage | 220 V | |
| Rated Current | 20 A | |
| Rated Power | 3.42KW | |
| Energy consumption | 1 KW-2.5 KW | |
| Net weight of equipment | 180 KG | |
| Gross weight of equipment | 260 KG | |

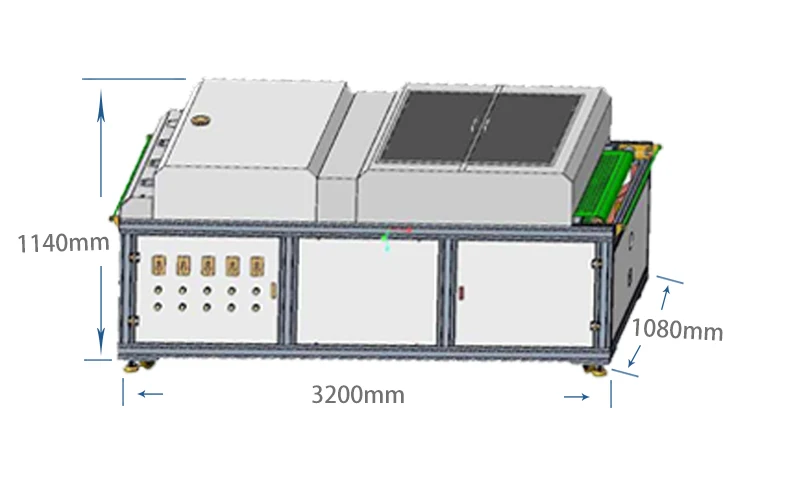

| Machine size | 2023*1210*1337 mm | |
| Wooden case size | 1850*1310*1367 mm | |

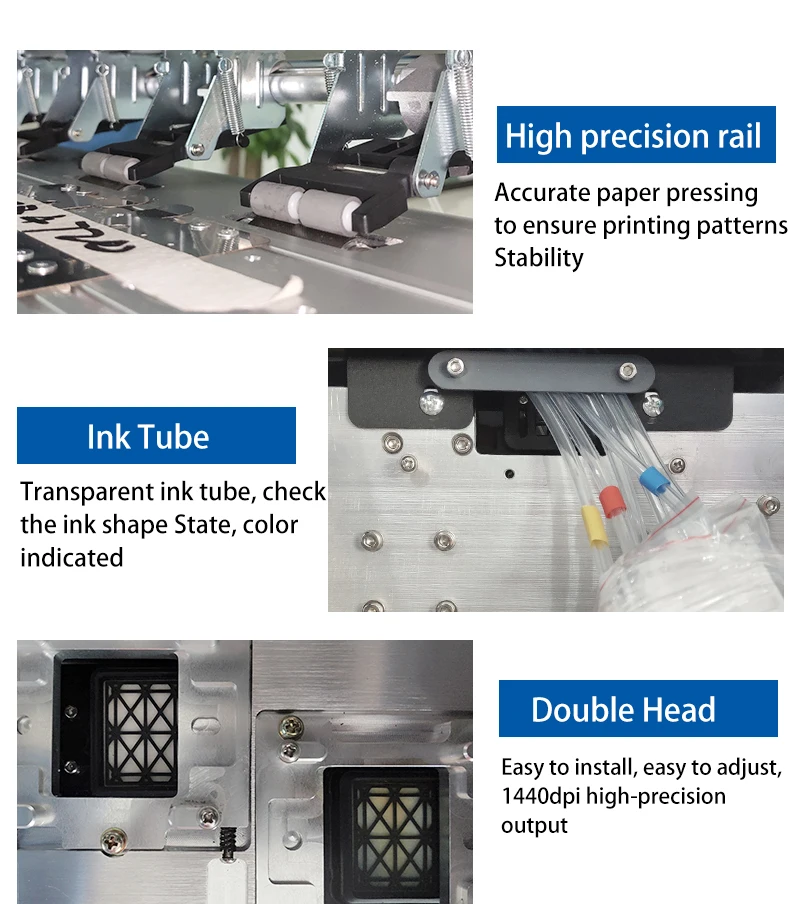

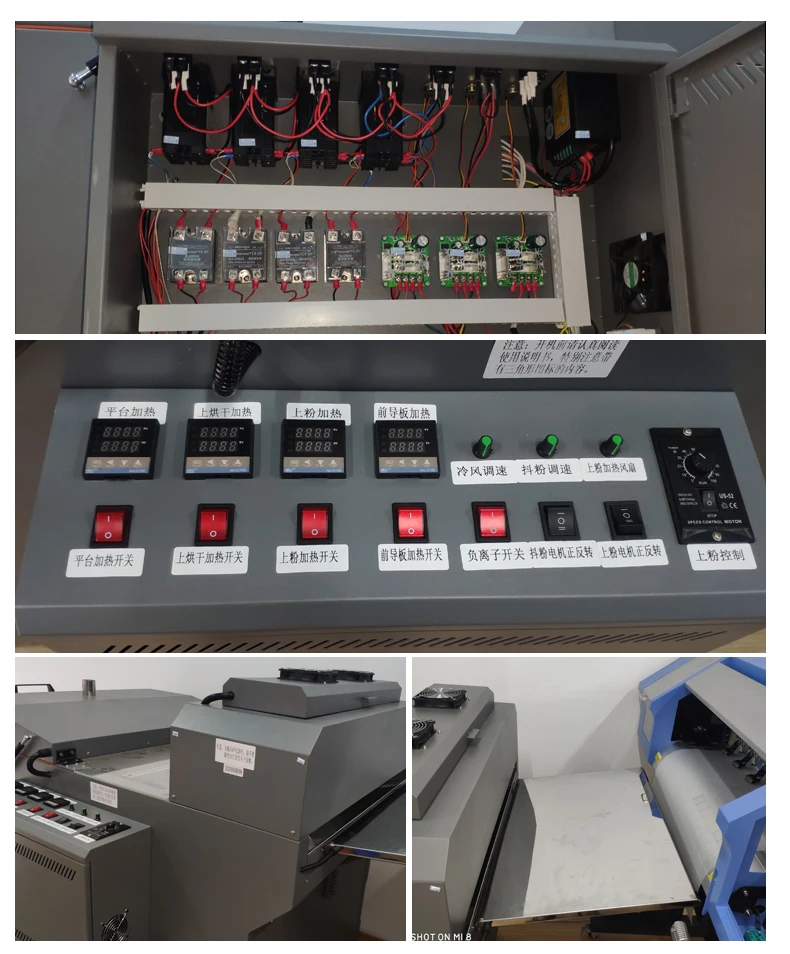

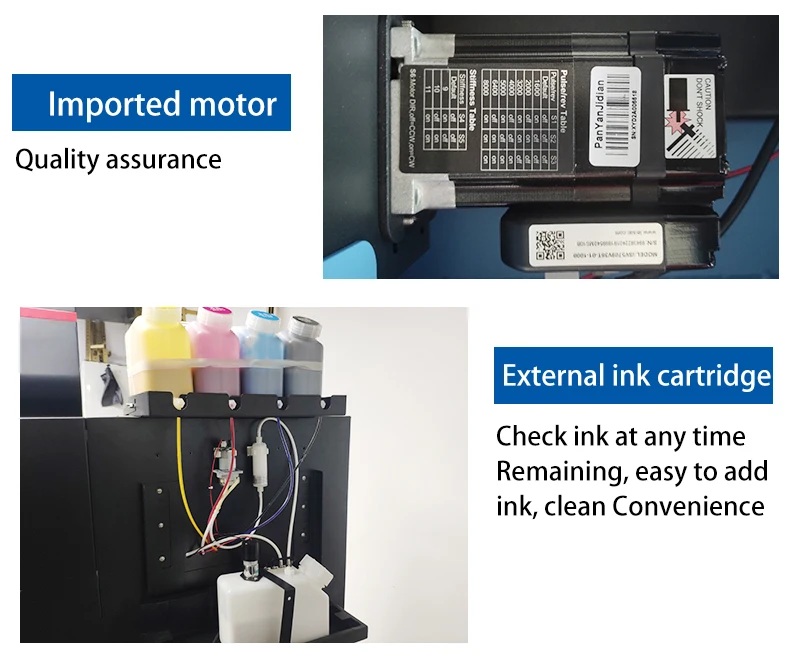

Detail parameter

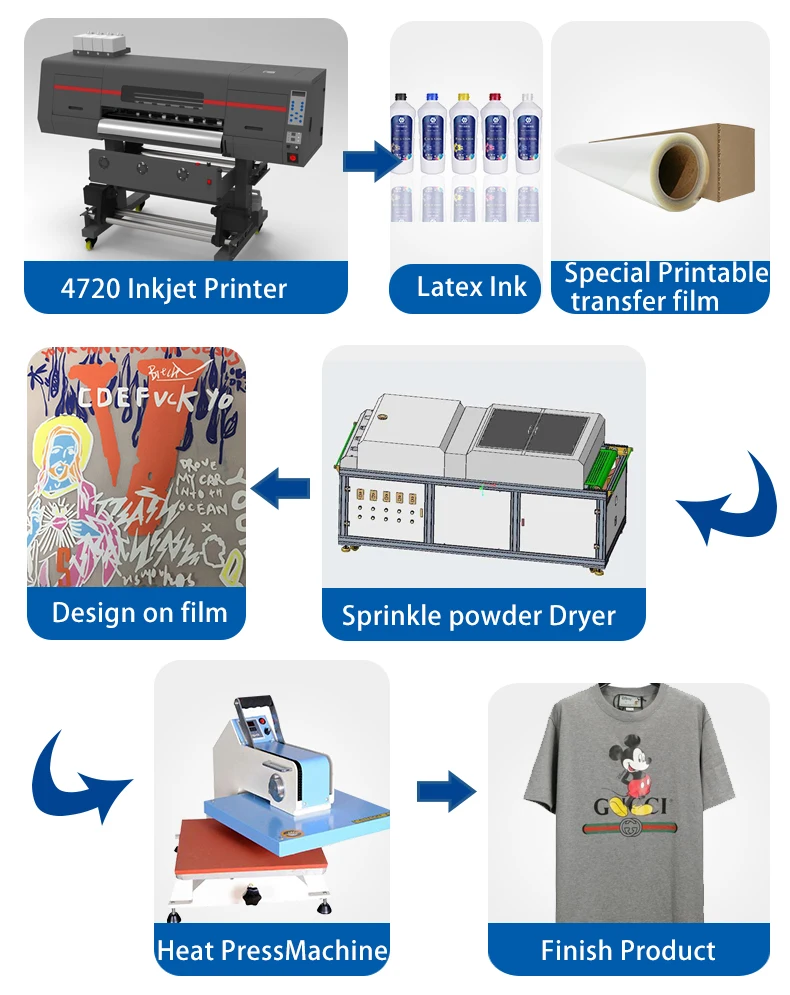

making process
Scope of application
Related Products
Why Choose Us
