Basic specification
On the market, a 3D printer Snapmaker of the same quality as a three-in-one 3D printer will cost you $799. Here, in addition to the 3D printer, you will also have a laser engraving machine and a CNC engraving machine of the same price. The money spent on a common 3D printer on the market is equivalent to buying a 3D printer, a laser engraving machine, and a CNC engraving machine.
Buy Now Affordable 3-in-1 3D Printer Snapmaker
Snapmaker BASIC SPECS:
Depth : 335 mm (13.2")
Height : 289 mm (11.4")
Width : 272 mm (10.7")
Weight : 4.5 kg (10 lbs)
Frame material : aluminum Alloys
File transfer : microSD card, USB cable
Power requirement : 100 – 240V AC 3.5"
Supported os : macOS, Windows
Snapmaker 3D PRINTING:
Heated bed : up to 80°C
Build volume : 125 x125 x125 mm (4.9" x 4.9" x 4.9")
Print head travel speed : up to 100 mm/s
Layer resolution : 50 – 300 microns
Nozzle diameter : 0.4 mm
Supported mateials : non-proprietary 1.75 mm PLA, ABS, etc.
Nonsupported materials : alumide, graphite, etc.
Supported file types : stl, obj
Software : snap3D. You can also use 3rd party software: Cura, Simplify 3D, Slic3r.
Snapmaker LASER ENGRAVING:
Work area : 125 x125 mm (4.9" x 4.9")
Laser power : 500 mW
Wave length : 405 nm
Safety class : class 3B
Supported materialsUPPORTED MATERIALS : wood, bamboo, leather, plastic, fabric, paper, non-transparent acrylic, etc.
Nonsupported materials : metal, glass, gem, transparent material, reflective materials, etc.
Supported file types : SVG, JPEG, PNG, etc.

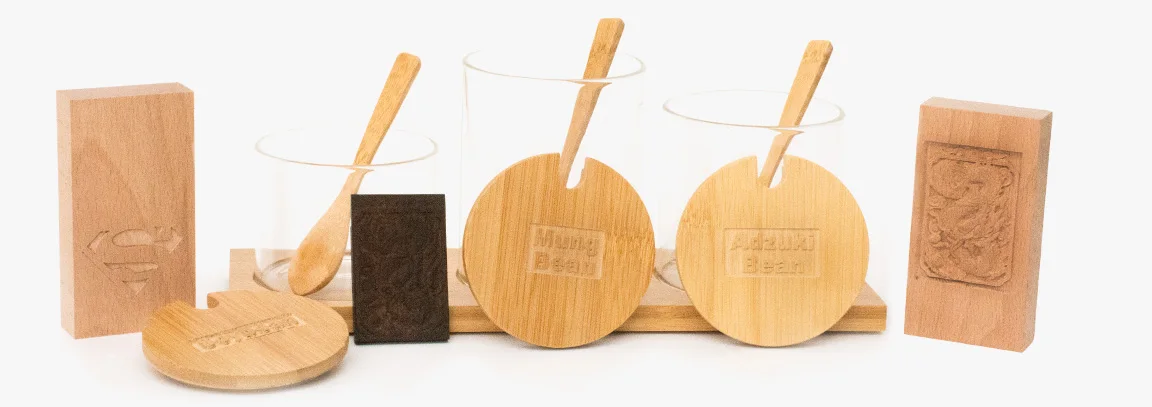

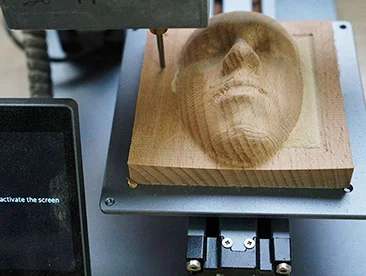

CNC CARVING:
Work area : 90 x90 x50 mm (3.5" x 3.5" x 2.0")
Shank diameter : 3.175 mm
Input voltage : 24V DC
Supported materials : wood, acrylic, PCB, carbon fiber sheet
Nonsupported materials : metal, glass, gem, plexiglass, etc.
Spindle speed : up to 19,000 RPM.
Supported file types: SVG, STEP, IGES, IGS, DWG, DXF, etc.
Product Description
Hey! Thanks for checking the Snapmaker 3-in-1 3D Printer out!

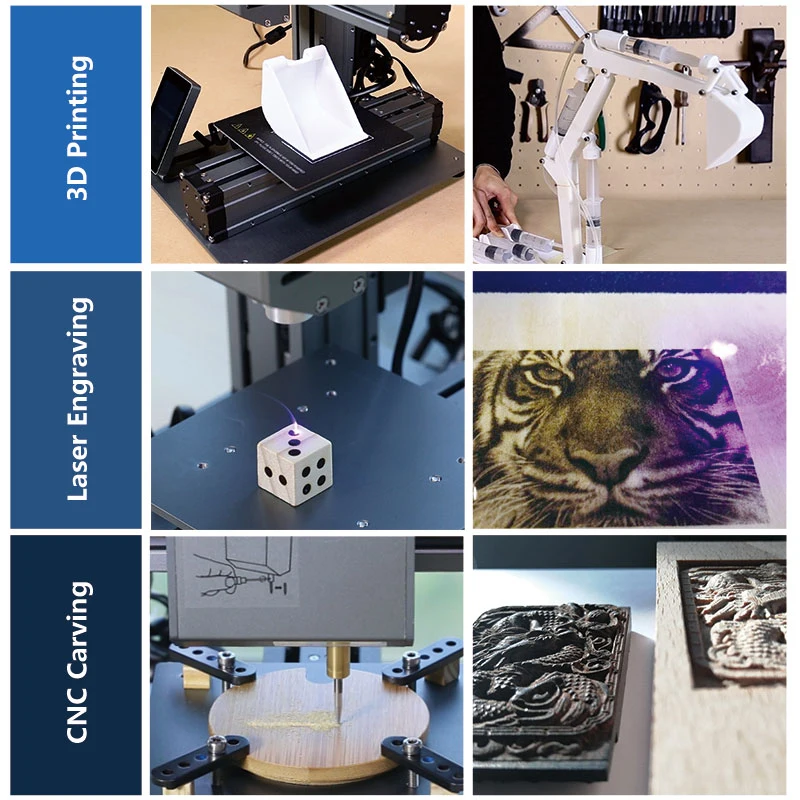

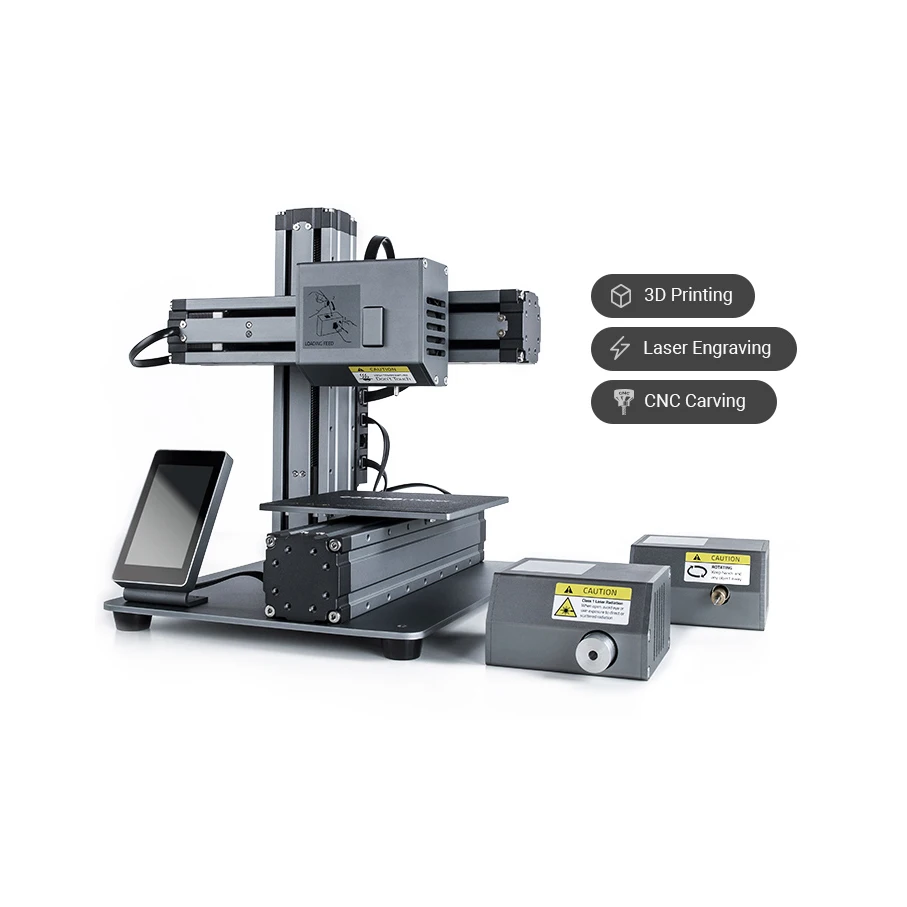

3-in-1 3D Printer is a combination of a 3D Printer, a Laser Engraver, and a CNC Carver.

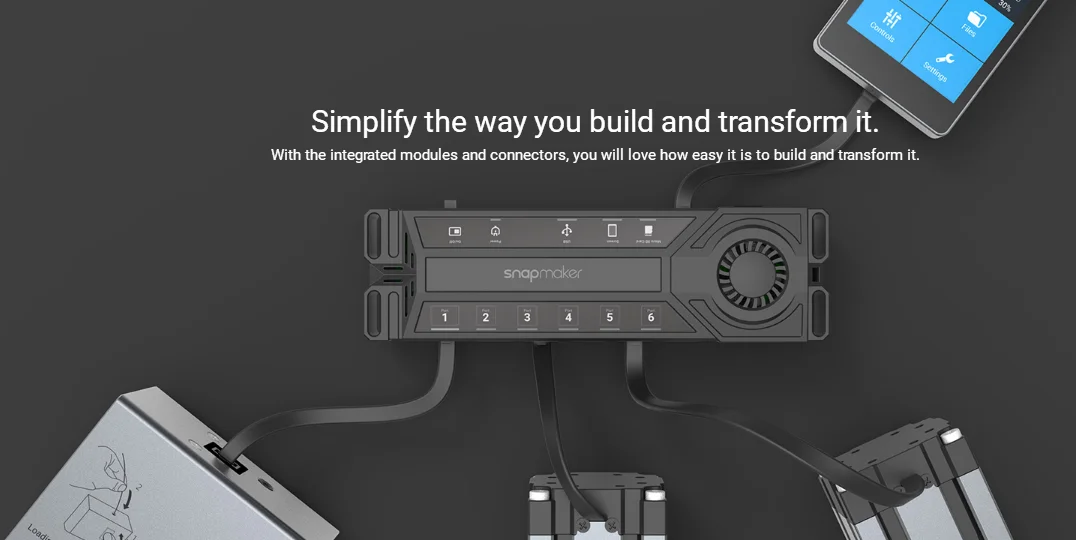

This well-machined all-metal unit always has a premium feel and look, high precision performance, easy-to-use software, movable and intuitive color touchscreen, hassle-free platform sticker, and most of all, this machine is modular.

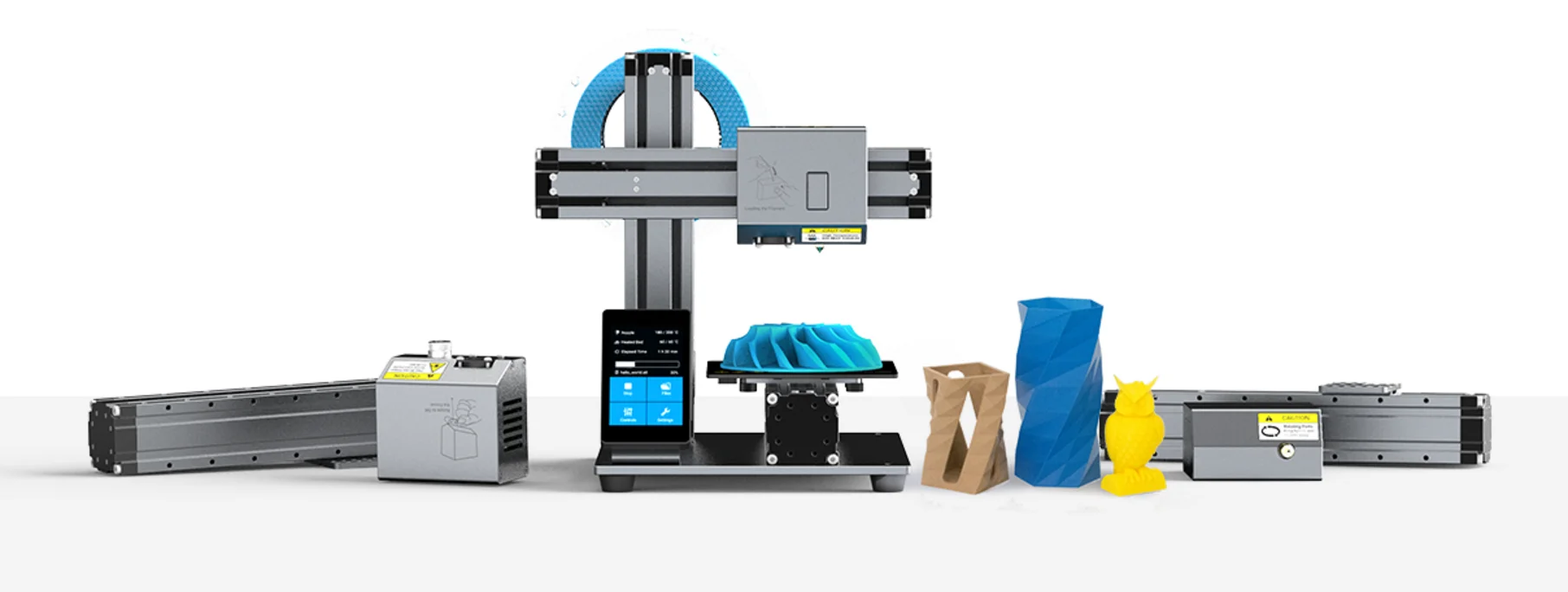

3-in-1 3D Printer can transform between three powerful tools with interchangeable heads and we\’re excited to see what you will create with your 3-in-1 3D Printer.
Snapmaker Main Features
1)3-in-1 3D Printer is entirely made of metal, ensuring a high quality and reliable 3D printing experience. Along with a rock-solid aluminum alloys frame, all major components are CNC machined. It uses the precision acme lead screw as a drive mechanism to boost the precision and capacity. The all-metal build also translates into a premium industrial outlook.
2)The key to high precision is the combination of a streamlined structure, CNC precision parts, and an improved mechanical design. 3-in-1 3D Printer is capable of high quality printing with excellent details.

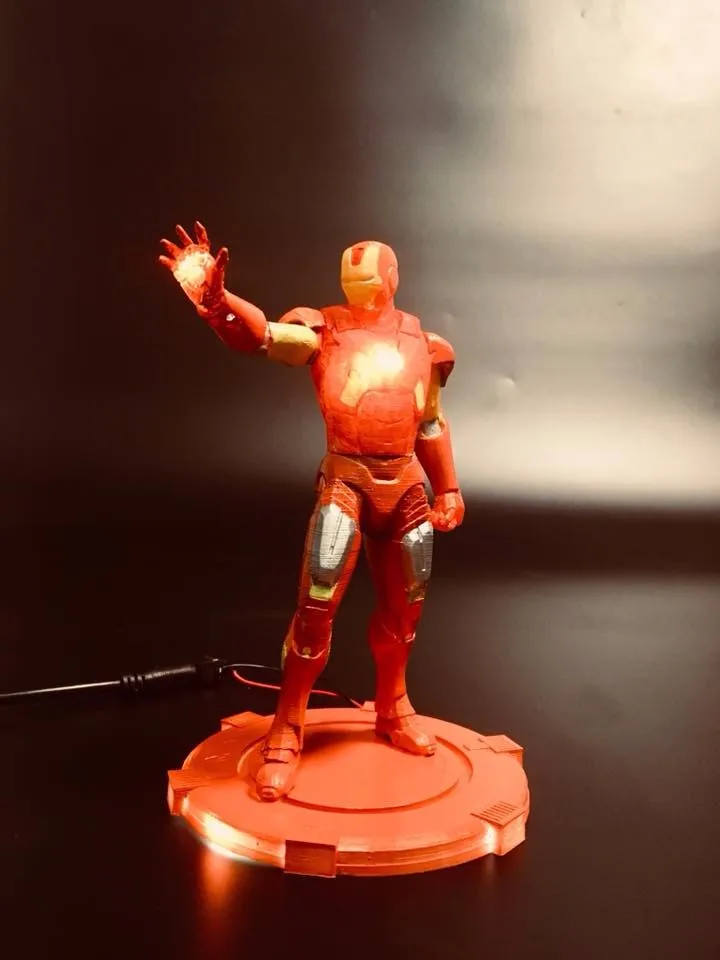

3)High resolution 3D printing is now an affordable reality with 3-in-1 3D Printer. It prints at a resolution as fine as a $1000 3D printer does, while at a fraction of the cost.

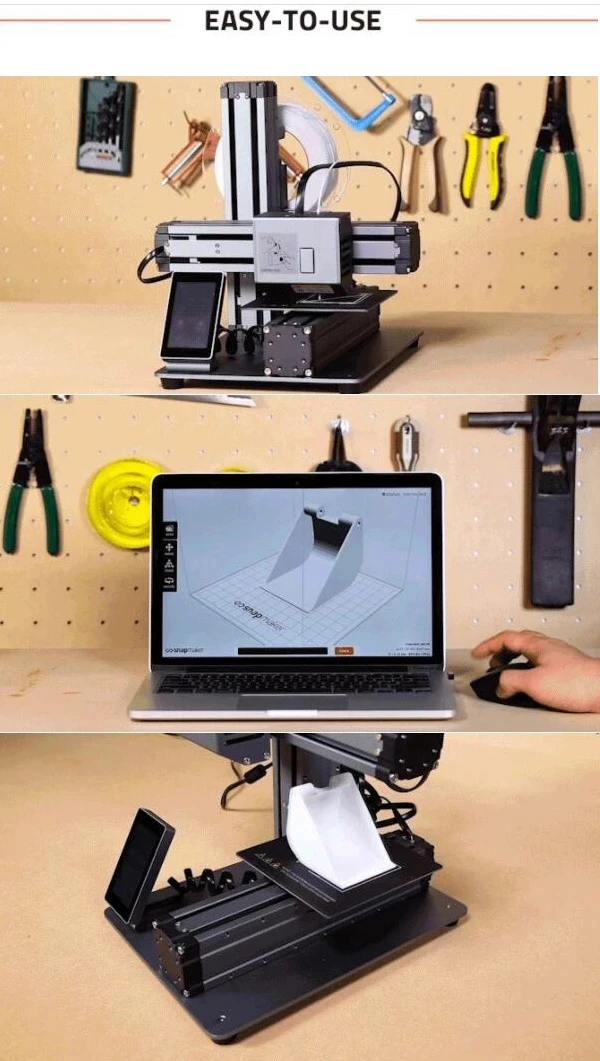

4)With movable and intuitive touchscreen, you can check and control various settings in your hand, such as homing, loading the filament, etc. The 3.2-inch color touchscreen enables you own a standalone 3D printer that is capable of handling your 3D printing workflow from start to finish.

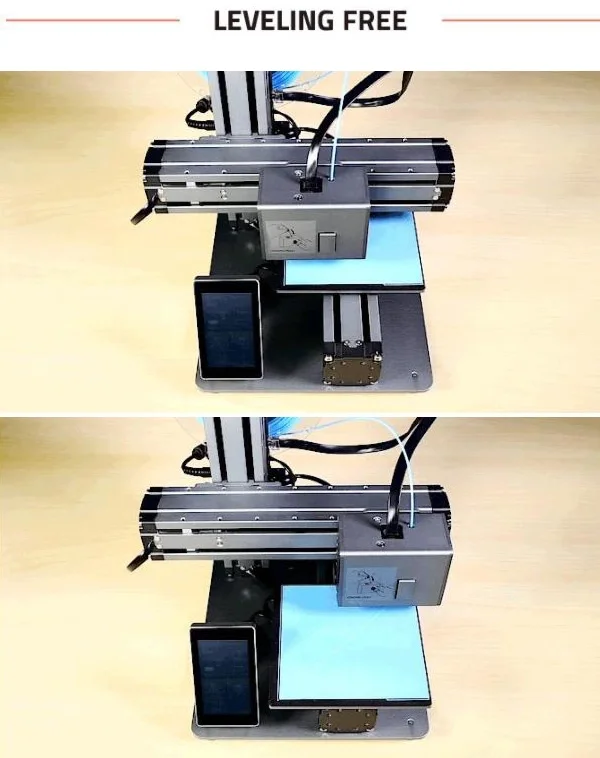

5)No more hassle of prying loose your print from the print bed! 3-in-1 3D Printer comes with a hassle-free and reusable platform sticker, offering better results than traditional blue painter\’s tape and glue sticks. Prints stick well on the printing sticker base and are easy to remove when completed.
Customer DIY

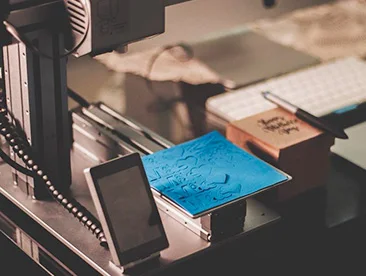

3-in-1 3D Printer can be easily transformed into a laser engraver using the add-on 500mW laser module.

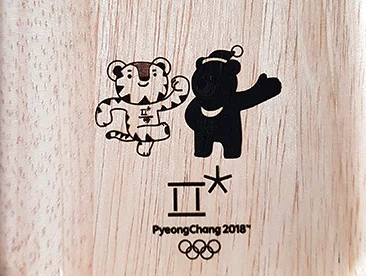

You can laser engrave images and logos on wood, bamboo, leather, plastic, fabric, paper and other soft surfaces. Now, customize your wallets, coasters, leather iPad cases, jeans, and more!

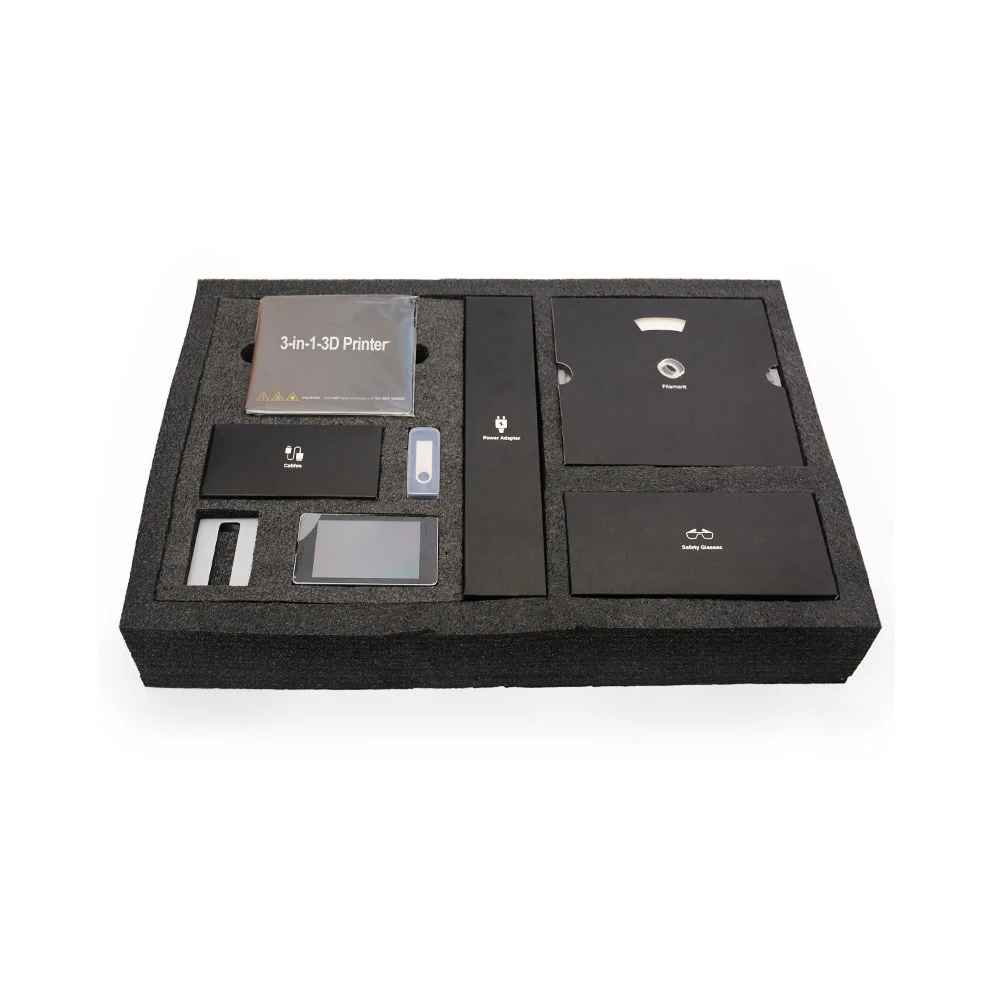

Accessories details
Q1:What power supply unit will be shipping with this printer?
The provided power supply unit can run on 100-240V AC, and can be used universally. It can accommodate different AC mains voltages with interchangeable connectors.
Q2:Will it be difficult to assemble the Snapmaker?

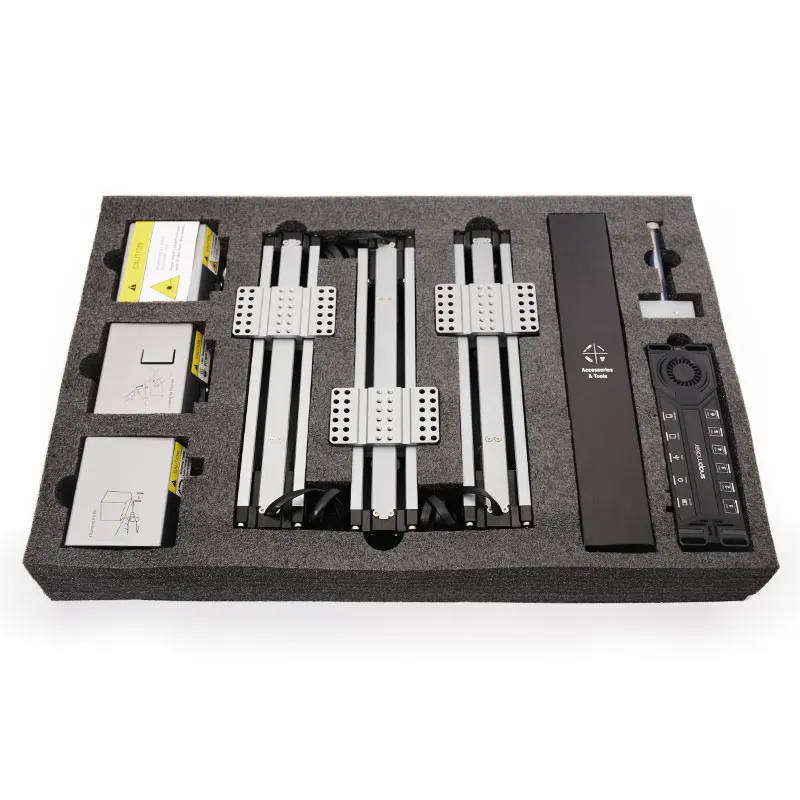

Definitely not. It will be an easy setup of 10 parts in only 10 minutes.
How can I transfer the file to the Snapmaker to start printing/engraving/carving? You can connect the Snapmaker to your computer using an USB cable (included), and then start printing/engraving/carving using the provided software.
Besides, the 3-in-1 3D Printer supports the standalone 3D printing from USB flash disk (included). That is, no computer connection required during printing.
Q3:Will there be any manual or video tutorial?
Yes. We have provided Quick Start Guides and video tutorials of using 3-in-1 3D printing, laser engraving and CNC carving, including unboxing, assembly, use of software, use cases, etc.

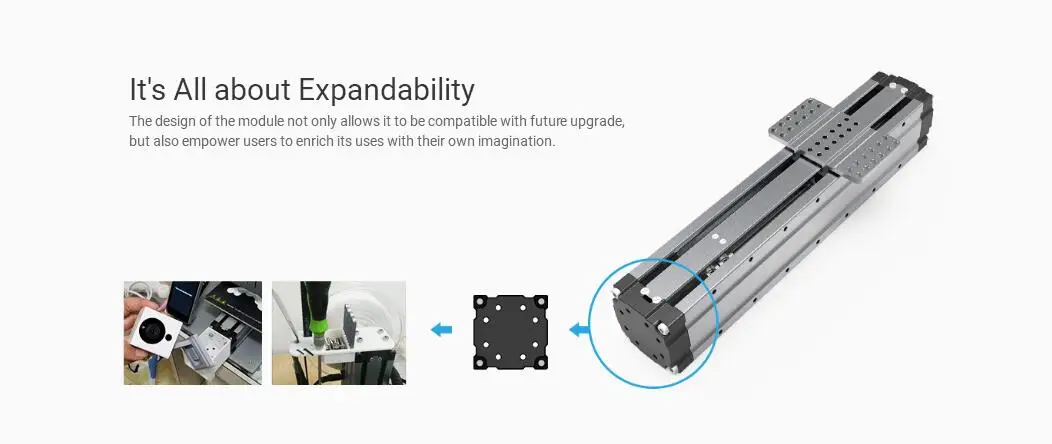

Q4:Is there a quick release for the modules so that we can change from 3D to laser and to CNC quickly?
Yes, it requires only the use of a hex screwdriver. Just remove the four screws that secure the module, and then attach another module onto X Axis. That\’s it. You don\’t even need to use a nut during the entire process.
