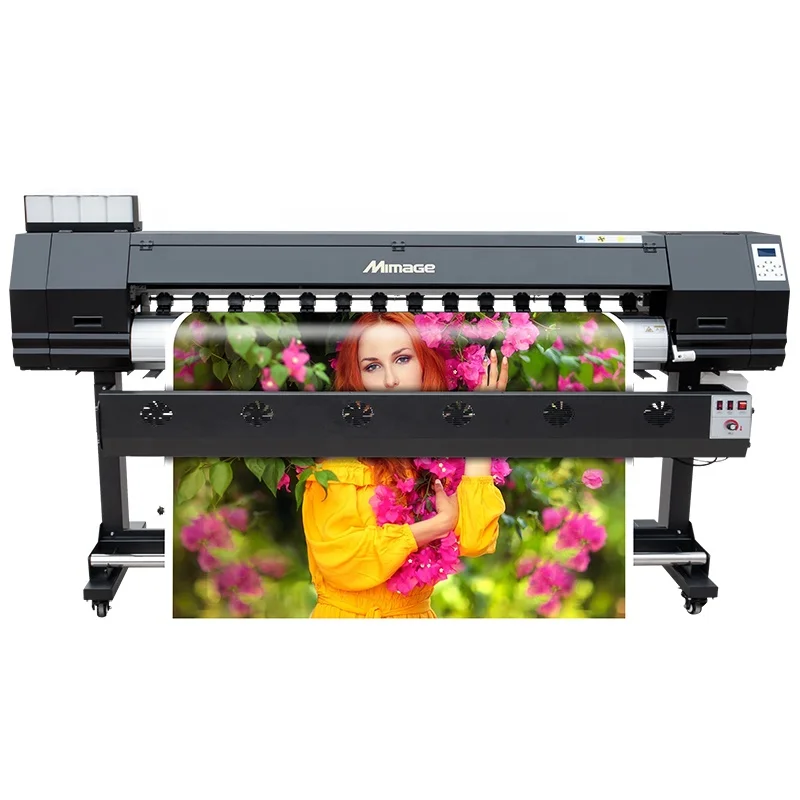

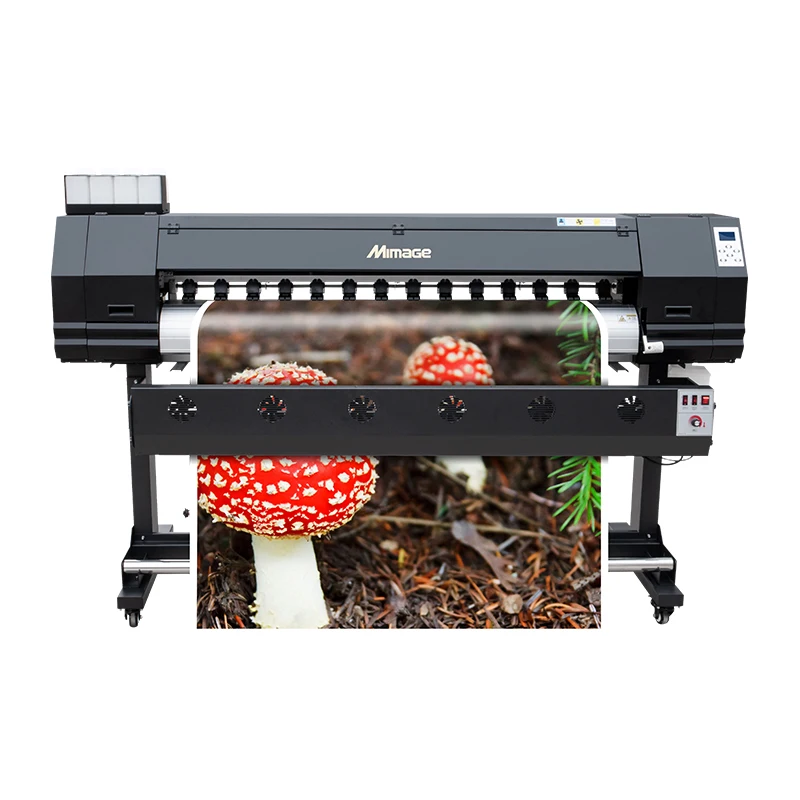

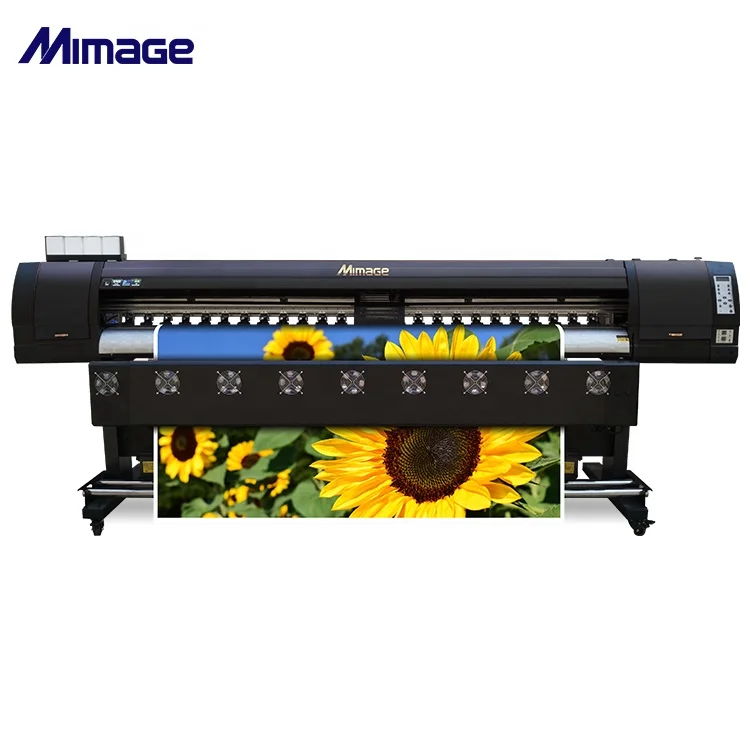

M32S Large Format Printer
Mimage series large format printer is one economical and practical printer for outdoor advertising,photo and home
decorationprinting, such as promotion advertising, poster, wallpaper printing. DX5 /DX7/DX11(XP600) head available.Many head choices for customers to choose.
With stable quality,this type has won highly praised of our customers.
Product Paramenters
| Print Head | M18S -2H | M32S -2H | M18S -4H | M32S -4H | |||
| Resolution | 1440Dpi | ||||||
| Media Width | 3250mm | ||||||
| Print Technology | Three intelligent eclosion print fuction;VSD technology | ||||||
| Printing Speed | 4PASS 10 m2
6PASS 6 m2 |
4PASS 8m2
6PASS 6m2 |
4PASS 17m2
6PASS 10m2 |
2PASS 17m2
4PASS 10m2 |
|||
| RIP Software | Maintop, Photoprint(Optional) | ||||||
| Printing Ink | UV ink | ||||||
| Color | CMYK+White/CMYK+W+Varnish | ||||||
| Ink Supply System | Negative pressure ink supply system | ||||||
| Media Type | Flex banner,PP, vinyl, light box cloth, flex, canvas, leather, reflective material ,3D wallpaper,curtains fabric,etc. | ||||||
| Printhead Height | 1.5-8mm Above Media Adjustable,usually 2-3mm | ||||||
| Platform Heater | Pre/Print/Post Heater,can be controlled seperately and temperature adjustable | ||||||
| Drying System | UV LED light | ||||||
| Auto Media Feeding System | Equipped(Max Media Weight 200kg) | ||||||
| Capping&Moisturizing | Auto Capping System&Moisturizing System | ||||||
| Clamp | Combined Anti-warping Clamps | ||||||
| Material dection | Standard | ||||||
| Auto Take Up System | Strong rolling take-up device with automatic damper | ||||||
| Power | Machine power: 2300W; External heating: 1200W, 220v/110v | ||||||
| Computer System | Win/7/Win10/Winxp | ||||||
| Working environment | Temperature: 20-30℃ Humidity: 35%-65% | ||||||
| Machine Dimension | 2720*750*1560mm | 4530*900*1700mm | 3500*750*1560mm | L4800*W900*H1700 | |||
| Package Dimension | 2745*770*670mm | 4560*1000*850mm | 3600*850*800mm | L4960*W1100*H900 | |||
| N.W/G.W | 200/240KGS | 450*500KGS | 300/350KGS | 620/700KGS | |||
Detailed Images
Main Edge Features
(1) Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for the metal.
(2) Front infrared heating system, and temperature adjustable
(3) Higher speed platform originates from classic Locor Easyjet model
(4) Strike and seal type cap station for single head, and lift up type cap station for double heads, very easy for maintenance. (5) Material detect system, once material run out, printer will stop printing automatically
(6) LED light for better effect checking when printing
(7) Secondary ink stank for stable ink supply for fast printing.
(8) Heavy duty and durable printer body.
(9) Auto and double power motor feeding and Take-up roll to roll system.
(10) Free Rip software Maintop 5.3.
Applications
Company Information
Our Warranty and Advantage
Our Advantage
(1) R&D Center
Professional & experienced professors, engineers and designersteam dedicated to our printer mechanical design, color performance
and durance etc. research and development for best using experience of our printers
(2) Production Line
Presently we have 4 main printer factories production line in China mainland to meet our dealers&end users quantity demands. Zhengzhou factory is our headquarter and administative centre. OEM/ODM service available based on mutual agreements.
Warranty And After-sales Service
Guaranteed Service Support:(1) 1 Year Warranty for printer, not include print head, damper, cable and cap, as they are consumables. (2) 3 Years Warranty for boards(3) whole life online after sales service, professional engineers team for online technical support and solutions.(4) More than 17 years rich printer experience (5) Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.
Recommend Products
FAQ
Warmly welcome all partners to join us for mutual benefits cooperation.
(1)Can I get a free sample for a testing?
Sure, you can send us the material you want to print, we will test it for you and take photos and videos for your reference, if you want to see it, just pay the shipping cost is ok.
(2) What's your delivery time?
We will arrange the shipment within 3~10 working days after received the deposit. And we keep some models in stock all year round.
(3) What payment method are supported?
Payment method is T/T ,D/P, Western Union, Credit Card, etc.
(4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
(5) Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
(6) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for anytime.
