Best uv flatbed printer 2023 for glass printing uv printing phone case machine 2513

Product Description UV flatbed printer is widely used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel,aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc. PrintheadEPSON DX5/DX7/XP600/TX800/I3200Printhead 2-4 unitsPrint EffectColor, white,varnish and 3D
embossing effect optional
Printing AreasGlass/Ceramic/Decoration/Advertising&Sign industry

Product ModelYC2513H
Printhead TypeEPSON
Printhead Number2-4 heads
Ink CharacteristicsUV Curing Ink(VOA Free)
Ink reservoirsRefillable on the fly while printing/1000ml per color
LED UV Lampmore than 30000-hours life
Printhead arrangementCMYKW V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide RailROUST mute
Working TableVacuum Sucking
Printing Size2500*1300mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution720X600dpi4PASS4-16sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwareUltraPrint/ Photoprint/ Onyx
Power Supply220V 50/60Hz(10%)
Operation EnvironmentTemperature 20 to 30℃,Humidity 40% to 60%
Machine Dimension4*1.94*1.42m
Packing Dimension4.2*2.15*1.35m/0.9
Warranty12 months exclude the consumables
Above specification subject to change without notice beforehand

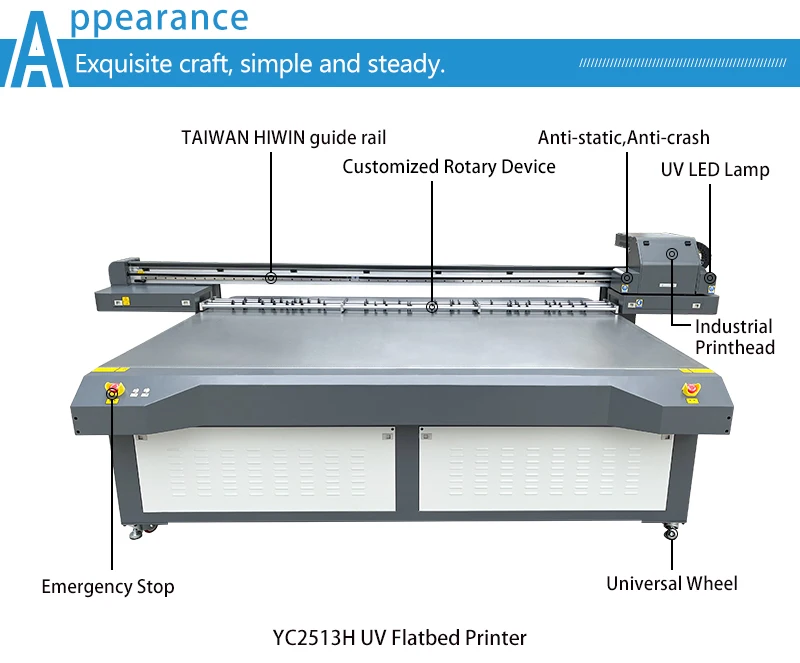

Machine Details Printing Samples Company Profile Jinan Yingcai Digital Technology Co., Ltd

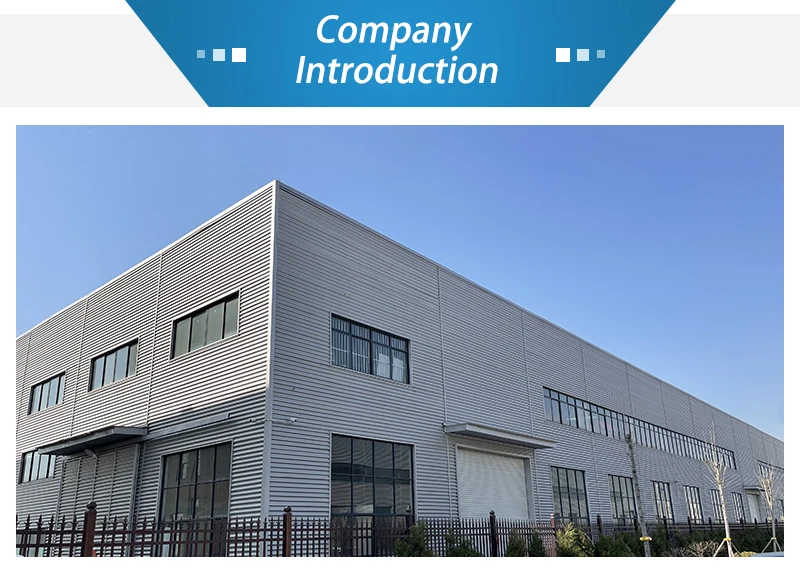

Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City,Shandong province,China. The independent plant covers more than 20,000 square meters, with six professional production lines to suppor
t annually sales volumeWinscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen
technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.
Packing & Delivery Customer Photos FAQ 1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4.How about the maintenance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer has to be responsible for the accommodation and transportation costs of the technical staff.

5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, print head, ink filter, and slide block etc.

7.How can I install and start to use the printer?
Normally we will arrange technical for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, winscolor should send the new part within 48 hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10.What kinds of materials need premier before printing?
Glass, ceramic, metal, acrylic, marble etc
