Product Description
24in 60cm 2 feet small format xp600 i3200 print head pvc banner canvas rolls small eco solvent printer

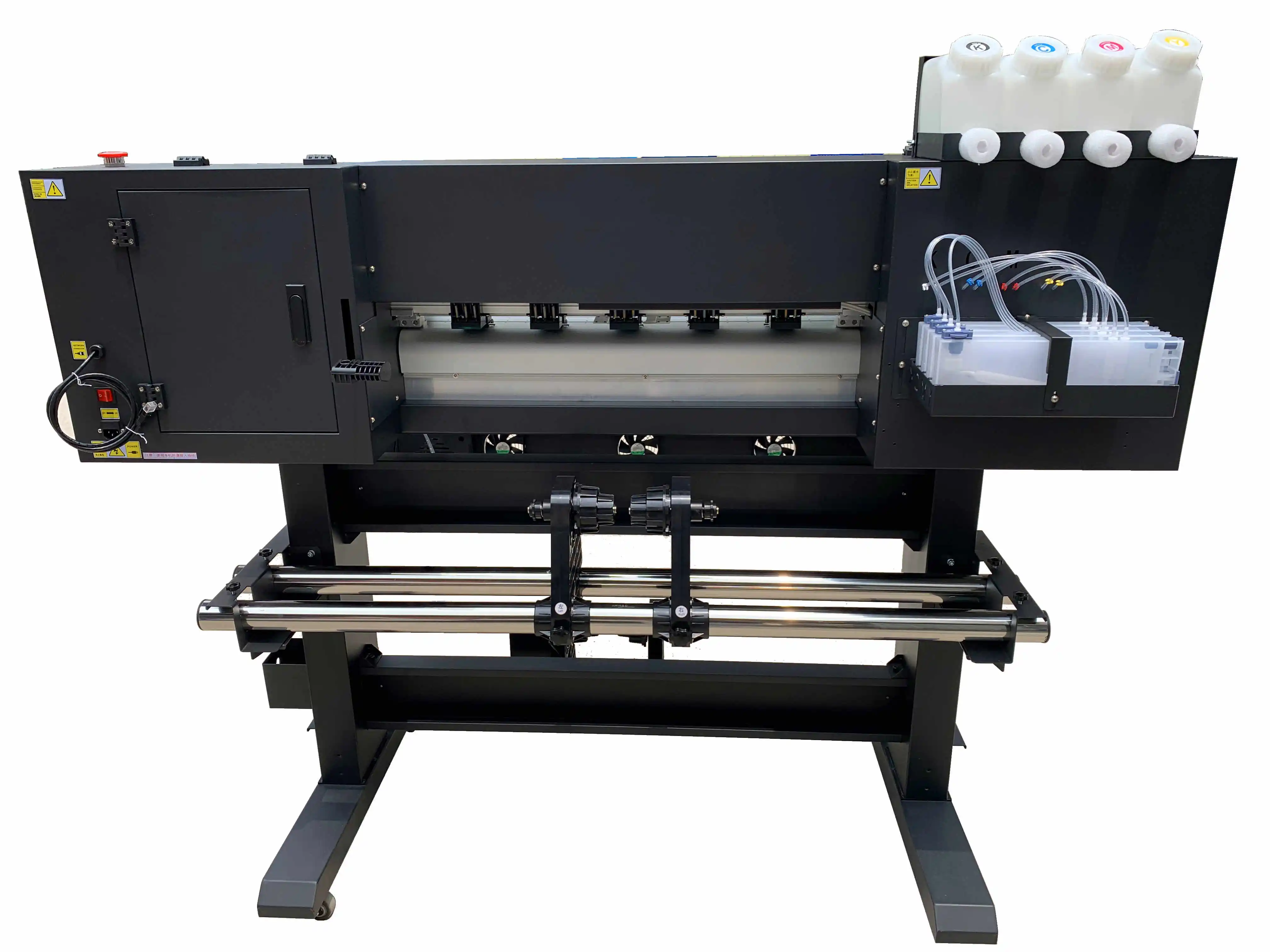

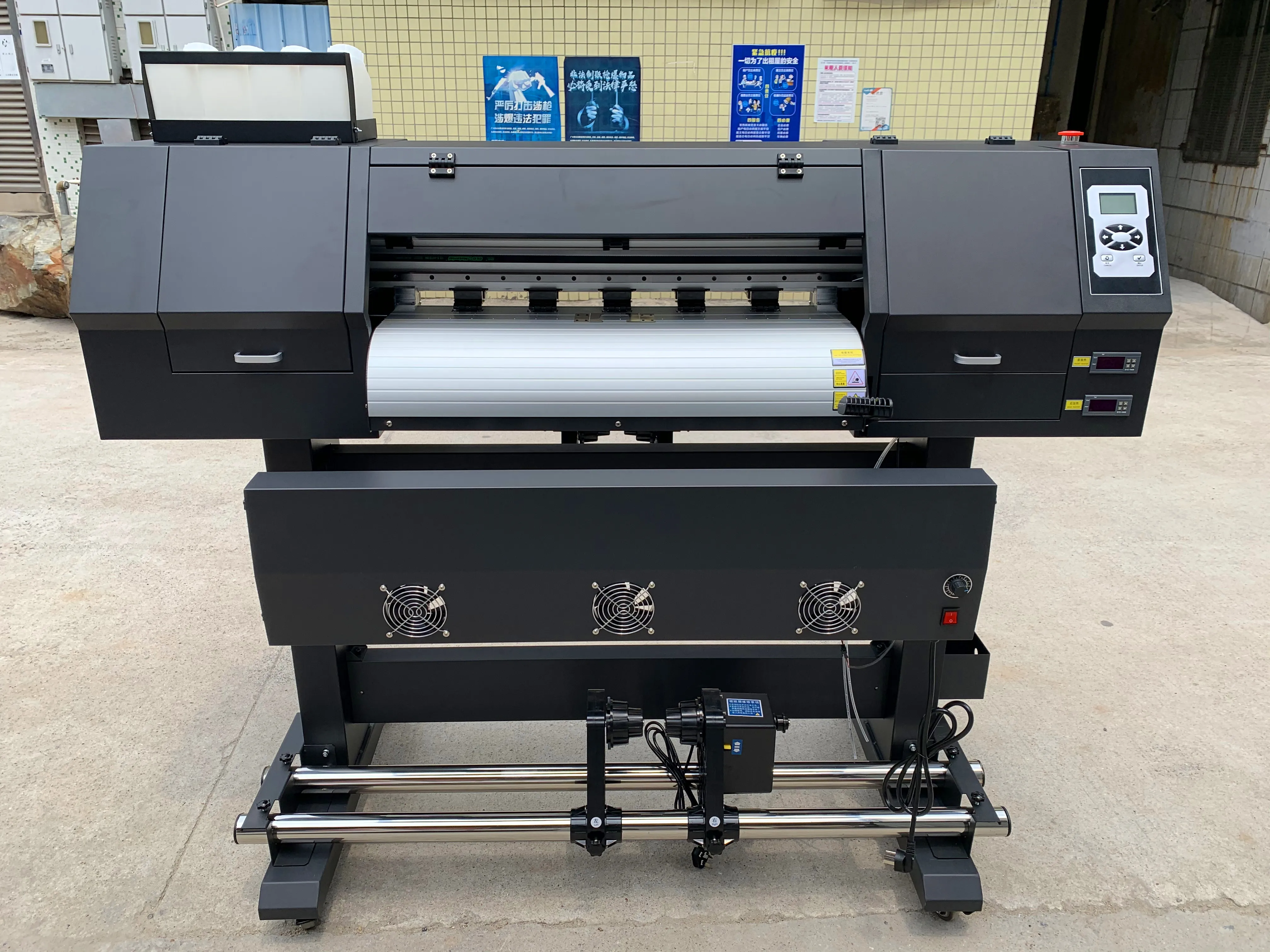

Description:28in 70cm sublimation eco solvent printer is high-precision Eco-solvent printers with a printing width of 70cm, The print heads
are using DX5 / DX7 / XP600 ( dx6, dx11) ESP3200 4720 Print Head, It can be used for indoor and outdoor advertising signs printing business.
The 70cm small format printer can install 1 or 2 printheads for indoor outdoor eco solvent printing, water based materials
printing and sublimation paper printing…
Notice:
One head configuration printer can install single DX5, DX7 DX11(XP600), i3200(4720) Printhead
Two heads configuration printer can install 2 pieces DX11(XP600) and 4720(i3200) printheads
| Technical Parameters of 70CM printer | ||||||
| Model | DS-E280SJ | |||||
| Printhead | 1 or 2 Pieces DX5 / DX7 / XP600 / eps3200 Printhead for option(eps3200, wf5113 option for sublimation / water base printing) | |||||
| Printing width | 68cm | |||||
Printing speed | Draft Mode | 3 Pass 15m2/h | ||||
| Production Mode | 4 Pass 11 m2/h | |||||
| Standard Mode | 6 Pass 8m2/h | |||||
| Qaulity mode | 8 Pass 5 m2/h | |||||
Ink | Type | Eco Solvent ink, Sublimation ink water based ink | ||||
| Color | C M Y K+C M Y K | |||||
| Ink supply | 1.5 liters big capacity Automatic Continuous Ink Supply System | |||||
| Printing media | Vinyl sticker, One way vision window film, PVC banner, PP paper, Wall Paper, Sublimation Paper etc. | |||||
| RIP software | Maintop / Photoprint software for option | |||||
| Data interface | LAN Cable net port connect with PC works with Win 7, Win 8, Win 10 and Win XP | |||||
Value-added Option | Media feed & take-up | Automatic media feeding and take-up system | ||||
| Heating | Stage hearing system include back, front hearing and dry fan | |||||
| Carriage | 2-5mm distance to the printing platform, adjustable | |||||
| Cleaning system | One button cleaning, easliy to start printing for operators | |||||
| Other | Inside LED Light strip | |||||

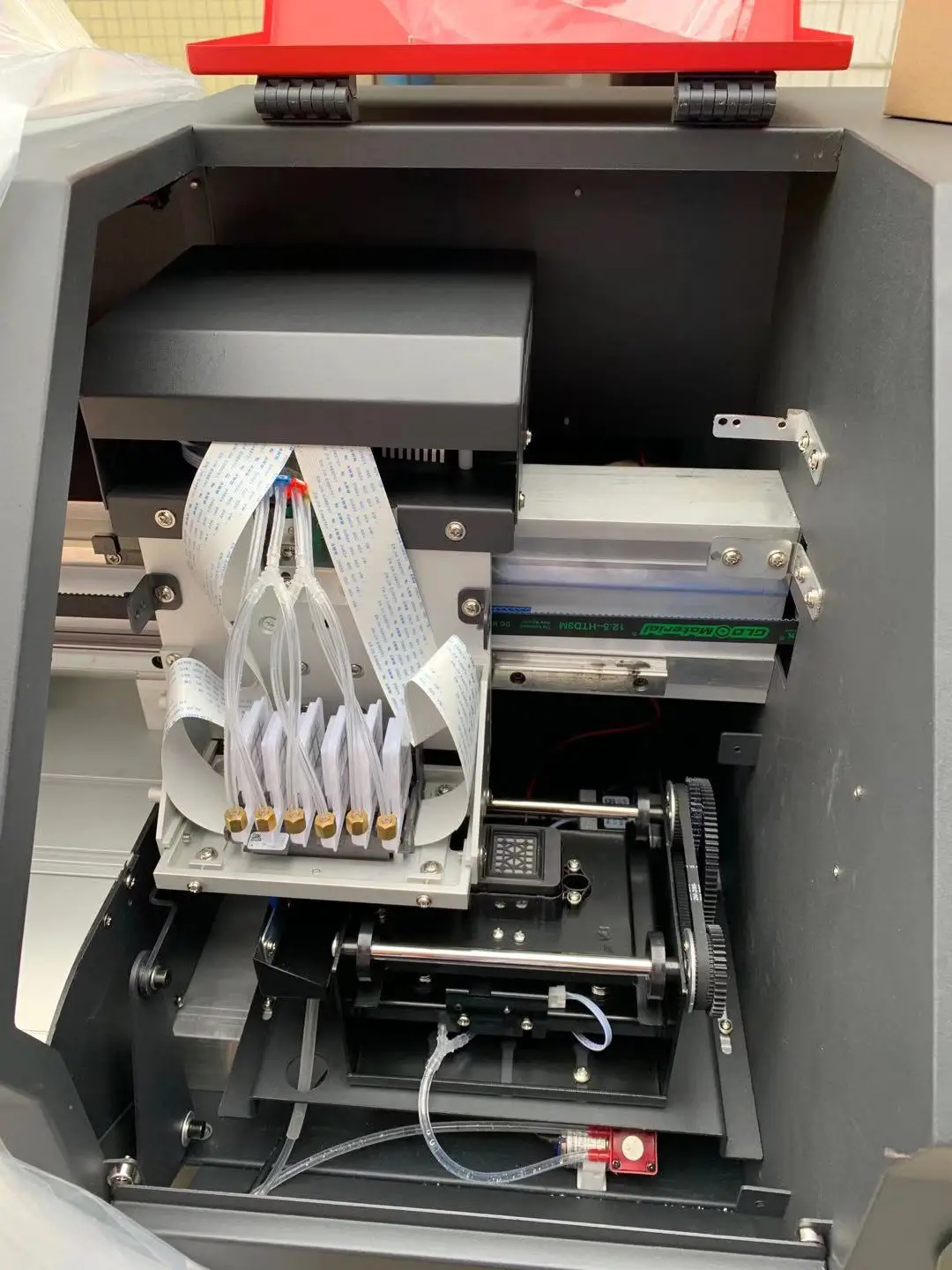

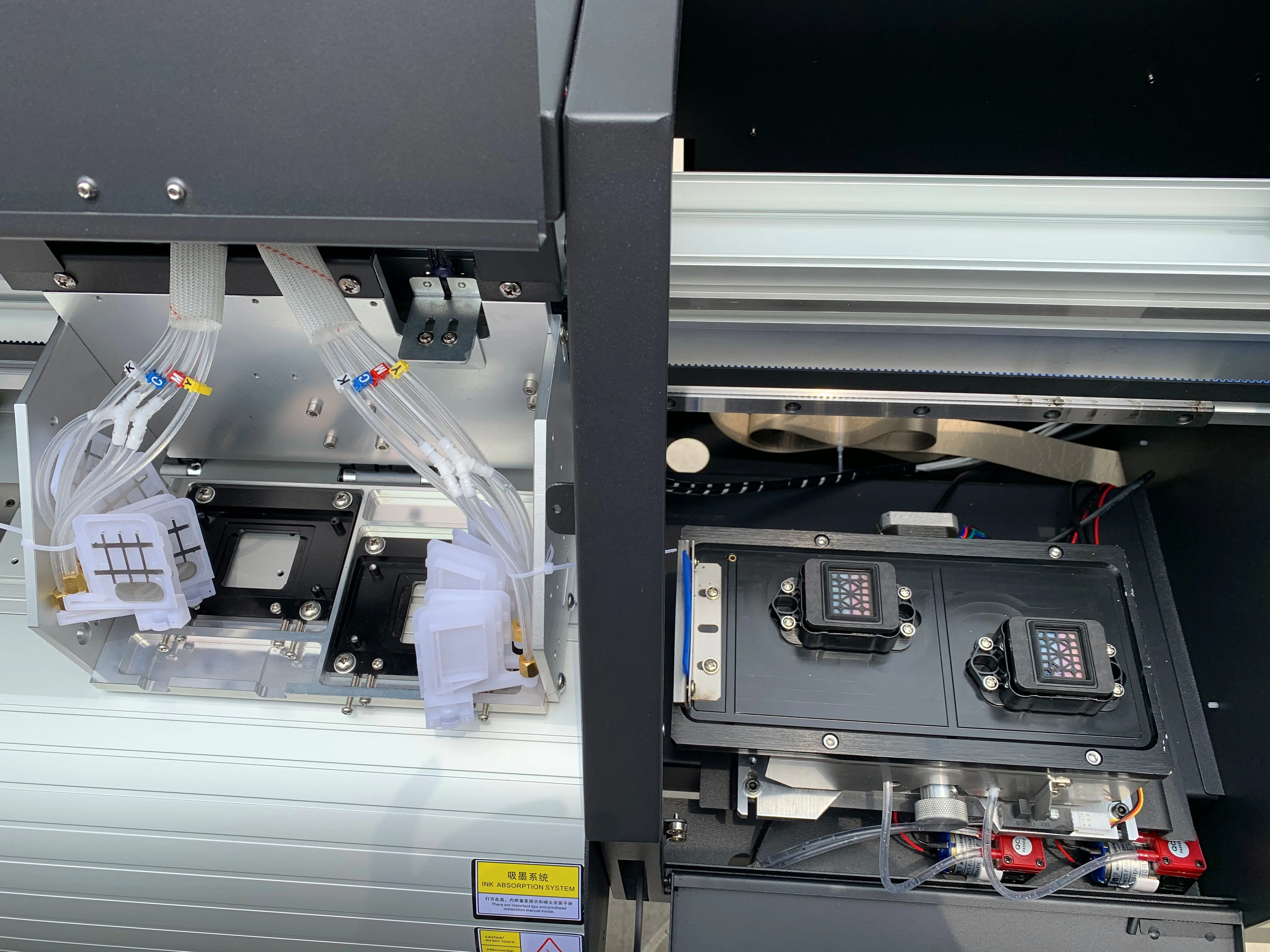

2 heads capping station
Automatic capping assy, easy for Ink absorption and good for print head maintenance
single head capping station
Automatic capping assy, easy for Ink absorption and good for print head maintenance

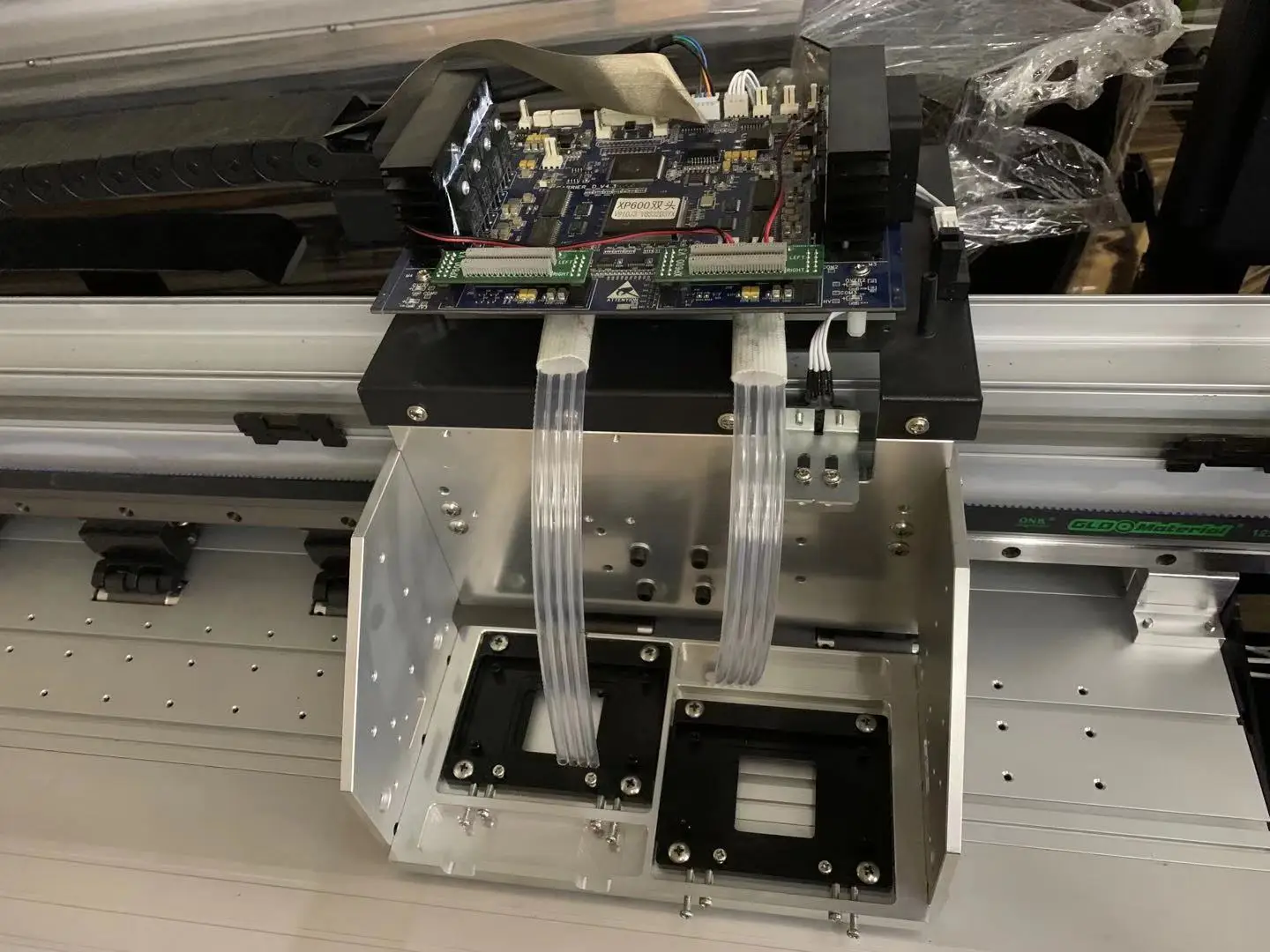

2 heads aluminum alloy structure carriage
1 head aluminum alloy structure carriage

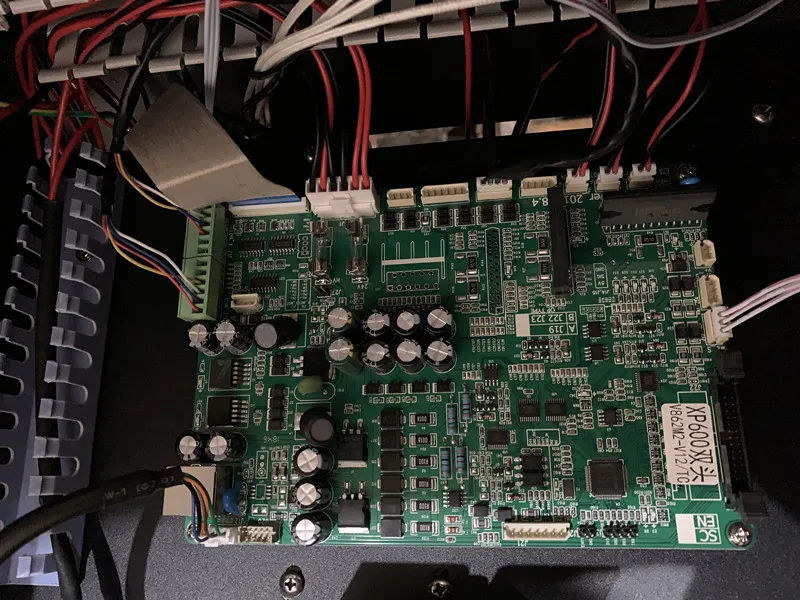

Famous board control system for 2 heads printer
Famous board control system for 1 head printer
Applications
Quality & Service Pre-Sales Service
* 7 days by 24 hours online Inquiry and consulting support.
* Sample printing and testing support.
* View our Factory.
* Click Here to Send Inquiry Now>>>
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service overseas.
* Professional English speaking technicians direct from factory
* One year warranty
Packing & Delivery
| Packaging | ||
| Size | 1100mm (L) * 750mm (W) * 730mm (H) | |
| Weight | 100 KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
