Product Description
Specification
| item | value |
| Type | Inkjet Printer |
| Applicable Industries | Printing Shops, Advertising Company |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | None |
| Showroom Location | None |
| Condition | New |
| Plate Type | Flatbed Printer |
| Place of Origin | China |
| Guangdong | |
| Brand Name | Brightness |
| Usage | Paper Printer, Label Printer, Card Printer, Cloths Printer |
| Automatic Grade | Automatic |
| Color & Page | Multicolor |
| Voltage | 110V/220V |
| Dimensions(L*W*H) | 275*73*64 |
| Weight | 145KG |
| Certification | CE |
| Warranty | 1 Year |
| After-sales Service Provided | Online support, Video technical support |
| Print Dimension | 1.69m |
| Ink Type | eco solvent ink |
| Key Selling Points | Multi Color |
| Marketing Type | New Product 2020 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor |

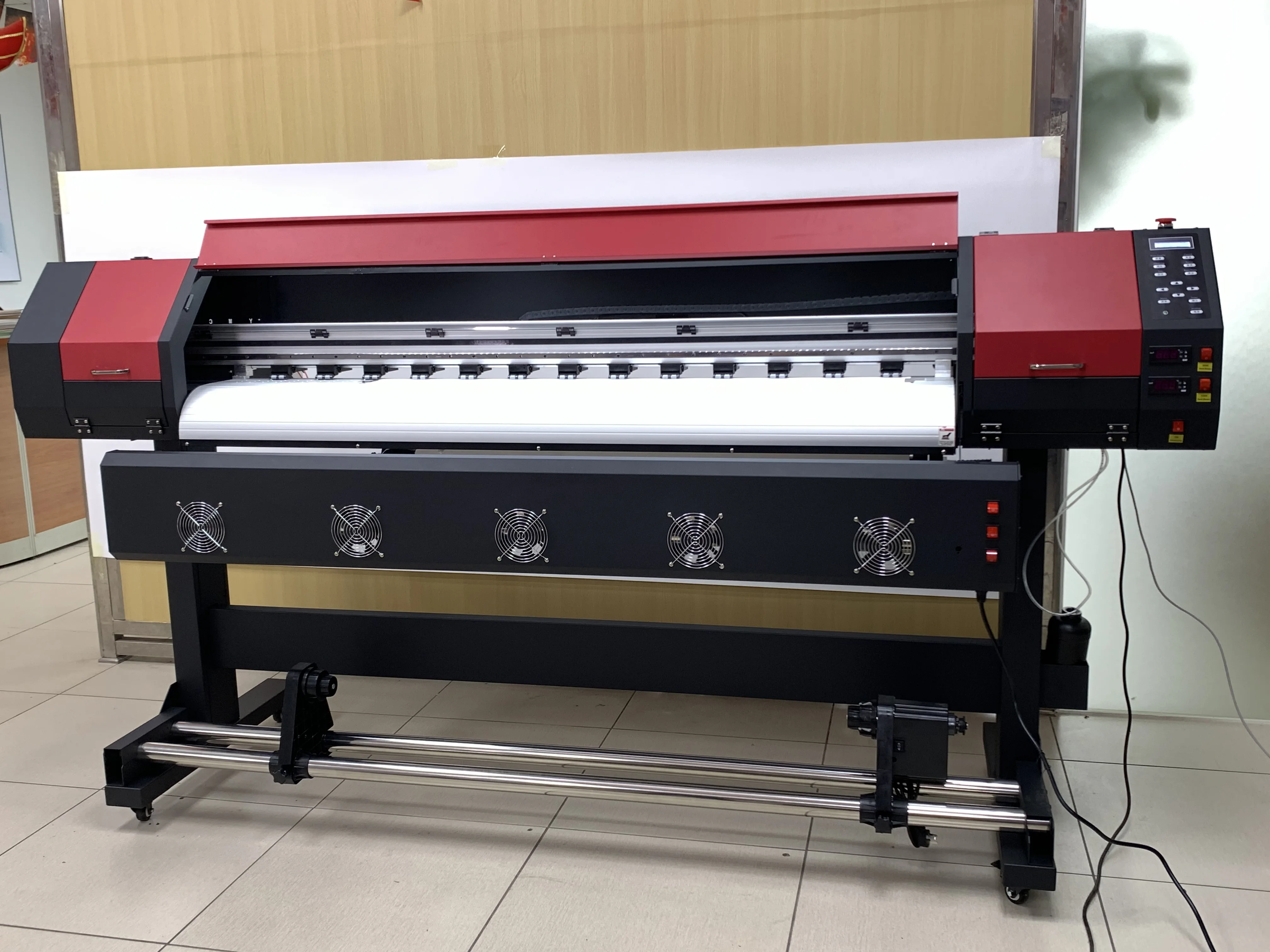

| Product name | 1.6m eco solvent printer |
| Media type | Outdoor PP paper, PVC sticker, vinyl, one way vision, banner etc |
| Heating system | Embedded intelligent system for front, middle and back heating |
| Cleaning system | Automatic up and down system |
| Resolution | 1440 dpi |
| Printhead | XP600 |
| Software | Maintop/Photo print |
| Operate system | WindowsXP/Win7/10 |
| Printing color | CMYK |
| Marketing Type | Ordinary Product |
1. Adopt three xp600/ DX5/Dx7 printhead, which with 180 nozzles / roll *8 lines *1. With high output quality that up to 1440DPI precision.
2.Staggered arrangement printing can imporve the productivity. The printing speed can be 15sqm/h in 4 pass under the staggered arrangement printing mode.
3.Adopt New Variable Droplet Control Technology, which achieve the three grayscale to make the printing more delicate and accurate. It can output the perfect printing with VSD technology even in high speed or low resolution.
4.With separately front, middle and back heating system, automatic Media take-up system.
5. The height of printhead can be adjustable according to the thickness of media from 2mm to 5mm, to ensure the good spary quality.
6. Adopt Three Intelligent Eclosion Print Function, which can eliminate the broken picture and make the printing more perfect and delicate.
7. With Automatic Ink Maintenance station. The automatic self-designed absorbing device with simple operation is convenient for mantaining, And the automatic up / down sucking ink function can reduce the wast of ink.
| Product model | LD1600 |
| Print Resolusion | 450dpi; 540dpi; 600dpi; 720dpi; 1080dpi; 1440dpi |
| Print head | XP600/DX5/DX7 |
| Number of print head | 1/2pcs |
| Production mode 4pass | 15 sq.m.s/h 30sq.m./h |
| Quality mode 6pass | 11sq.m. /h 21sq.m./h |
| Ink box volume | 1500ml |
| Ink supply method | Continuous supply system |
| Printing media | Materials of indoor or outdoor advertisements, home decoration materials, etc. |
| Printing head height | About 1.8-2.2mm from the media, adjustable |
| Heating system | Embedded intelligent system for front, middle and back heating |
| Medium absorption system | Multi-segment intelligent wind suction |
| Operating system | WindowsXP/Win7 |
| Operation langue | Chinese/English |
| Full automatic configuration | Automatic paper-feeding, auto flash works ,auto absorbs ink, auto ink squeegee. ect |
| External dryer | Optional/Standard |
| Power(W) | Standby power 32W, maximum |
| Data transfer interface | USB |
| The input power | Standby power 32W, maximum power of 1700W |
| Software | Maintop Photo print |
| The input power | 50hz/60hz,220v 10A |
Operating:
1.Before connecting the data cable from dolloy board to printhead, confirm the left and right of the data cable at first.
2.Connect the data cable to print head according to the picture.

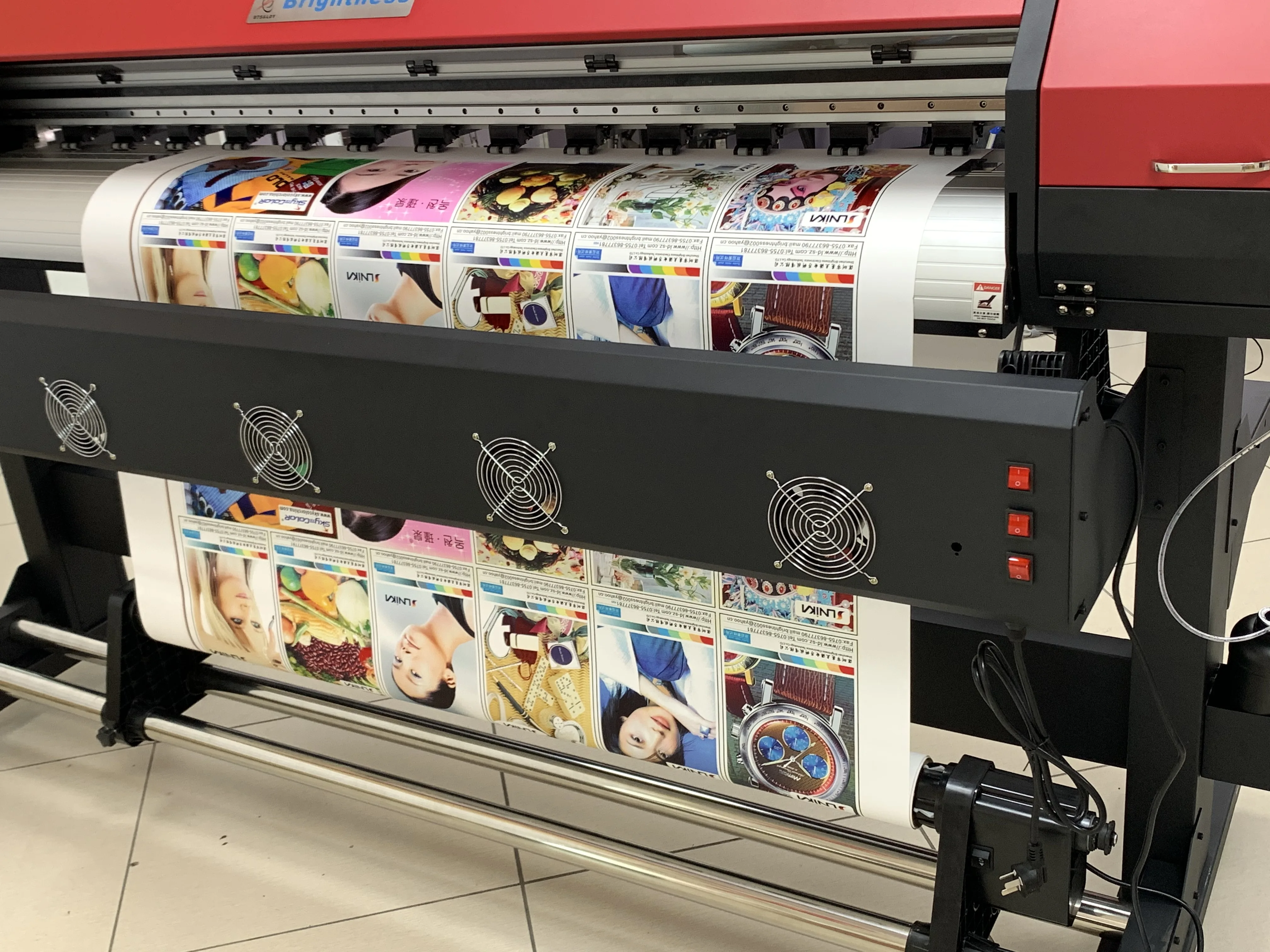

3.Insert the damper on the nozzle cover, pay attention to the corresponding color. Printing effect:
Packing & Delivery
Eco solvent printer| SIZE(L*W*H) | 2800mm*610mm*750mm |
| Weight | 180KG |
Company Profile
Shenzhen Brightness Electronics Technology Co., Ltd. has been devoted in producing and dealing with Novajet print heads, CISS systems and refillable compatible cartridges. We have been dealing with all kinds of professional printing products and heat transfer equipment, such as Novajet printers 750, 850.1000I & spare parts, GZ solvent printers, all kinds of printing inks, hot air welders, cutting plotters and cold laminators, heat press machines (plain heat press machines, mug heat press machines, plate heat press machines, cap heat press machines, versatile heat press machines) and media."Good quality, high technique, considerate service and competitive price" is our enterprise tenet. Shenzhen Brightness Electronics Technology Co., Ltd. will always supply our customers with the best products and services. With our continuous markets promotion, Shenzhen Brightness Electronics Technology Co., Ltd. will always make great efforts to supply our new and old customers with reliable products and sincere service. We believe we can make a more bright and colorful future with your support and cooperation. FAQ 1. who are we?We are based in Guangdong, China, start from 2006,sell to Domestic Market(00.00%),Eastern Europe(00.00%),Southern Europe(00.00%),North America(00.00%),Southeast Asia(00.00%),Western Europe(00.00%),Africa(00.00%),Mid East(00.00%),South America(00.00%),Northern Europe(00.00%),South Asia(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Printer,Hot Air Welding Machine,Print Head Cleaner,Eyelet Punching Machine,Print Head
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
