Product Description
Specification
| PRODUCT NAME | 1300*1300mm UV Printing Machine Inkjet Digital Printer | |
| Printer Technology | ||
| Printer Model | 1313 UV PRINTER | |
| Print size | 130*130CM | |
| Print head model | xp600/DX7/DX5/i3200/Toshiba CE4M,Ricoh G5i | |
| Qty of Printhead | 1-3PCS/2-4PCS | |
| Print Direction | Unidirectional /Biodirectional | |
| Print head height | Automatic height adjustment,Max 100mm; Customized 300mm | |
| Print head cleaning | Auto cleaning system | |
| Ink System | ||
| Ink type | UV ink | |
| Ink color | CMYK/ CMYK+W/CMYK+W+V/CMYK+W+V+LC+LM | |
| Ink tank volumn | 1000ML | |
| Ink supply | General ink supply system | |
| Drying type | Imported LED lamp curing | |
| White ink stirring | Available | |
| While ink circulation | Available | |
| Media | ||
| Media type | Metal/ ceramic/ acrylic/ PVC/ glass/ cardboard and others | |
| Max.media thickness | 100mm; 300mm can be customized | |
| Operation | ||
| Operation Language | Chinese / English | |
| Operation system | Windows XP/ Windows 7 | |
| Operation platform | Completed vacuum adsorption platform | |
| Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH | |
Computer configuration | System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G | |
| Others | ||
| RIP software | RIPRint/UnitedFancy/Photoprint/Printfactory | |
| Interface | LAN | |
| Color control | Comply with ICC standards with curve and density adjustment function | |
| Image format | TIFF,JPEG,POSTSCRIPT3,PDF | |
| Power supply | AC220V,50/60HZ | |
| Power consumption | 1 KW | |
| The UV lamp | LED curing, 20000 hours long lifetime, water colling | |
YDM 1313 uv printer
* YDM 1313 UV Printer with newest configuration* 1313 uv printer equipped with 1L ink carriage with low ink warning system and white ink circuration&stiring system
* 1313 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently
* 1313 uv printer equipped with anti-collision device for printhead
1313 UV Printer details 01
* YDM 1313 UV Printer equipped with double static eliminators and anti-collision device* Printing on plastic material more frequency,avoid inks splashing when printing
* printing work more safe and easier
1313 UV Printer details 02
* HIWIN Guide Rail for YDM 1313UV Printer* Higher printing accuracy
* Printing more stability
* Auto Height Sensor,Keep printhead safe during printing work
* Crossbeam up-down system,less working failures,maintance easier,head cleaning easier
1313 UV Printer details 03

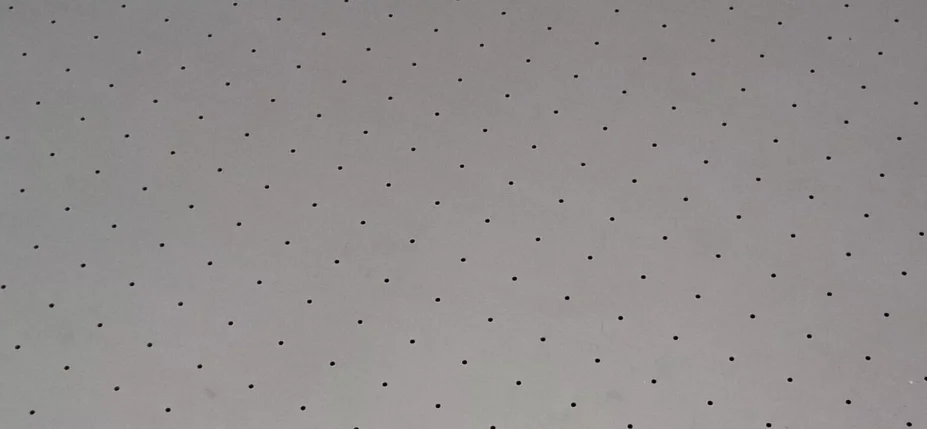

* Vaccum Suction Platform for YDM 1313 UV Printer* Much easier to print the lighter items on the platform
UV Printer Application * 1313 UV Printer is usually used in Advertising,decoration and other industry* A0 printing machine equipped with Epson xp600/i3200/DX5/Ricoh G5i or Toshiba CE4M printhead,it can reach your mass production
demand.
* YDM 1313 uv inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum
sheet,ceramic tiles,plywood,furniture and other materials.
Company Profile YDM established in 2005, located in Linyi city, Shandong province, specialized in digital inkjet printer, UV flatbed printer,large format roll to roll printer and CNC router. Company has a general investment of 30,000,000 RMB, covers an area of 4,500 m2
and annual production capacity is more than 2,500 units. * YDM as the leading manufacturer of Inkjet printers and uv printers with
around 20's experience in China,we have a professional
service team to fix the problem on time for our customers from all over the world.
* YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially
* 24 hours*7,professional service
FAQ Q:What materials can print on?
A:POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading,blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and
decoration market): glasses, ceramic tiles, wood, even furniture.
Q:What’s RIP installation interface supported language?A:Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese
(traditional)
Q:How to do when the status of the printhead is not good?
A:1. Trun off power, move the printhead to the initial position, check if the printhead and cap top is in the same line
2. Do one time cleaning action, and print the test status.
3. If above operation still can’t solve this problem, then disassembly the printhead, cleaning the printhead manually or use
cleaning machine to clean the printhead
4 If the status keep the same after above all operations, then check other parts or change a new printhead to test.
Q: What is Warranty Policy
A: During the 1 year warranty if any part is faulty, our company will give you replacing parts for free. When the warranty
expired, our company will still provide free technician support. Especially, you will gain the lifelong Warranty for your large
format digital inkjet printer with continuously ink order.
Q: What about the after-sales service ?
A: We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate
the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.
